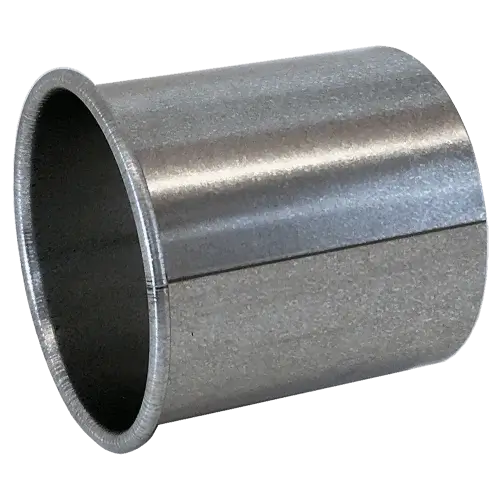

QF Machine Adapter

Nordfab® Ducting Quick-Fit® Machine Adapters are created to allow an easy connection of QF® ductwork to machines that require fume or dust removal. Ends are Quick Fit (rolled edge) to NOFIT (plain edge). Made available in galvanized, aluminum, stainless and stainless+ with optional no. 4 finish materials.

Expanded

Nordfab Ducting Quick-Fit Machine Adapter dimensions Nordfab Ducting Quick-Fit Machine Adapter

Notes:

  • QF (standard), Flange, Raw
  • Length of expanded end is 3.00" long for 4" diameter and greater, 3" expanded length is 0.625
  • Specify if ID or OD is required - if ID is more or less than dimensions shown above, order as a 3222 reducer
  • Galvanized steel provides little or no breakdown of zinc (zinc melting point 740°F)
  • Raw

    Nordfab Ducting Quick-Fit Raw Machine Adapter dimensions Nordfab Ducting Quick-Fit Raw Machine Adapter

    Construction:

    • Seam: longitudinal seam is a solid-laser welded for strength and to reduce leakage (exception: 3" adapter is lapped, spot welded, and caulked.)

    Display: All | Galvanized | Stainless
    Search Sku:
    Search Filter: On

    The items displayed below are only those that match the above Search Sku filter.
    Clear the filter and display all parts.

    Part #/Description Price
    3249-0300-10000
    03" MACHINE ADAPTER, GALVANIZED STEEL
    3.10" RAW END O.D. / 3.03" RAW END I.D.
    $32.20
    3249-0300-20000
    03" MACHINE ADAPTER, 304 STAINLESS STEEL
    3.10" RAW END O.D. / 3.03" RAW END I.D.
    $59.30
    3249-0400-10000
    04" MACHINE ADAPTER, GALVANIZED STEEL
    3.93" RAW END O.D. / 3.86" RAW END I.D.
    $32.20
    3249-0400-20000
    04" MACHINE ADAPTER, 304 STAINLESS STEEL
    3.93" RAW END O.D. / 3.86" RAW END I.D.
    $59.30
    3249-0500-10000
    05" MACHINE ADAPTER, GALVANIZED STEEL
    4.94" RAW END O.D. / 4.87" RAW END I.D.
    $35.80
    3249-0500-20000
    05" MACHINE ADAPTER, 304 STAINLESS STEEL
    4.94" RAW END O.D. / 4.87" RAW END I.D.
    $68.30
    3249-0600-10000
    06" MACHINE ADAPTER, GALVANIZED STEEL
    5.96" RAW END O.D. / 5.89" RAW END I.D.
    $41.90
    3249-0600-20000
    06" MACHINE ADAPTER, 304 STAINLESS STEEL
    5.96" RAW END O.D. / 5.89" RAW END I.D.
    $81.60
    3249-0700-10000
    07" MACHINE ADAPTER, GALVANIZED STEEL
    6.96" RAW END O.D. / 6.89" RAW END I.D.
    $44.90
    3249-0700-20000
    07" MACHINE ADAPTER, 304 STAINLESS STEEL
    6.96" RAW END O.D. / 6.89" RAW END I.D.
    $87.90
    3249-0800-10000
    08" MACHINE ADAPTER, GALVANIZED STEEL
    7.95" RAW END O.D. / 7.88" RAW END I.D.
    $48.40
    3249-0800-20000
    08" MACHINE ADAPTER, 304 STAINLESS STEEL
    7.95" RAW END O.D. / 7.88" RAW END I.D.
    $94.60
    3249-0900-10000
    09" MACHINE ADAPTER, GALVANIZED STEEL
    8.95" RAW END O.D. / 8.89" RAW END I.D.
    $51.20
    3249-0900-20000
    09" MACHINE ADAPTER, 304 STAINLESS STEEL
    8.95" RAW END O.D. / 8.89" RAW END I.D.
    $100.80
    3249-1000-10000
    10" MACHINE ADAPTER, GALVANIZED STEEL
    9.95" RAW END O.D. / 9.89" RAW END I.D.
    $54.60
    3249-1000-20000
    10" MACHINE ADAPTER, 304 STAINLESS STEEL
    9.95" RAW END O.D. / 9.89" RAW END I.D.
    $107.00
    3249-1100-10000
    11" MACHINE ADAPTER, GALVANIZED STEEL
    10.94" RAW END O.D. / 10.88" RAW END I.D.
    $58.10
    3249-1100-20000
    11" MACHINE ADAPTER, 304 STAINLESS STEEL
    10.94" RAW END O.D. / 10.88" RAW END I.D.
    $113.10
    3249-1200-10000
    12" MACHINE ADAPTER, GALVANIZED STEEL
    12.04" RAW END O.D. / 11.97" RAW END I.D.
    $58.10
    3249-1200-20000
    12" MACHINE ADAPTER, 304 STAINLESS STEEL
    12.04" RAW END O.D. / 11.97" RAW END I.D.
    $113.10
    3249-1300-10000
    13" MACHINE ADAPTER, GALVANIZED STEEL
    13.05" RAW END O.D. / 12.97" RAW END I.D.
    $61.50
    3249-1300-20000
    13" MACHINE ADAPTER, 304 STAINLESS STEEL
    13.05" RAW END O.D. / 12.97" RAW END I.D.
    $119.30
    3249-1400-10000
    14" MACHINE ADAPTER, GALVANIZED STEEL
    14.04" RAW END O.D. / 13.96" RAW END I.D.
    $61.50
    3249-1400-20000
    14" MACHINE ADAPTER, 304 STAINLESS STEEL
    14.04" RAW END O.D. / 13.96" RAW END I.D.
    $119.30
    3249-1500-10000
    15" MACHINE ADAPTER, GALVANIZED STEEL
    15.04" RAW END O.D. / 14.96" RAW END I.D.
    $64.40
    3249-1500-20000
    15" MACHINE ADAPTER, 304 STAINLESS STEEL
    15.04" RAW END O.D. / 14.96" RAW END I.D.
    $127.70
    3249-1600-10000
    16" MACHINE ADAPTER, GALVANIZED STEEL
    16.04" RAW END O.D. / 15.97" RAW END I.D.
    $64.40
    3249-1600-20000
    16" MACHINE ADAPTER, 304 STAINLESS STEEL
    16.04" RAW END O.D. / 15.97" RAW END I.D.
    $127.70
    3249-1700-10000
    17" MACHINE ADAPTER, GALVANIZED STEEL
    17.05" RAW END O.D. / 16.97" RAW END I.D.
    $71.00
    3249-1700-20000
    17" MACHINE ADAPTER, 304 STAINLESS STEEL
    17.05" RAW END O.D. / 16.97" RAW END I.D.
    $138.20
    3249-1800-10000
    18" MACHINE ADAPTER, GALVANIZED STEEL
    18.04" RAW END O.D. / 17.96" RAW END I.D.
    $71.00
    3249-1800-20000
    18" MACHINE ADAPTER, 304 STAINLESS STEEL
    18.04" RAW END O.D. / 17.96" RAW END I.D.
    $138.20
    3249-2000-10000
    20" MACHINE ADAPTER, GALVANIZED STEEL
    20.04" RAW END O.D. / 19.96" RAW END I.D.
    $73.50
    3249-2000-20000
    20" MACHINE ADAPTER, 304 STAINLESS STEEL
    20.04" RAW END O.D. / 19.96" RAW END I.D.
    $144.40
    3249-2200-10000
    22" MACHINE ADAPTER, GALVANIZED STEEL
    22.05" RAW END O.D. / 21.97" RAW END I.D.
    $80.60
    3249-2200-20000
    22" MACHINE ADAPTER, 304 STAINLESS STEEL
    22.05" RAW END O.D. / 21.97" RAW END I.D.
    $152.50
    3249-2400-10000
    24" MACHINE ADAPTER, GALVANIZED STEEL
    24.02" RAW END O.D. / 23.94" RAW END I.D.
    $92.80
    3249-2400-20000
    24" MACHINE ADAPTER, 304 STAINLESS STEEL
    24.02" RAW END O.D. / 23.94" RAW END I.D.
    $175.40
    Desired I.D. or O.D. of Raw End
    The standard dimension in the above description will be used,
    unless a custom size for the raw end is specified below.
    Custom Size:
    Measured as:
    I.D.
    O.D.
    Note Icon Custom Notes:


    ORDERING NOTES: Unless specified, 3" through 24" is QF. Over 24" is flanged. Data subject to change without notice. Stainless steel components requiring flanges will be supplied with stainless steel flanges unless otherwise specified. For special parts or items to be custom manufactured, contact us for quotation.
