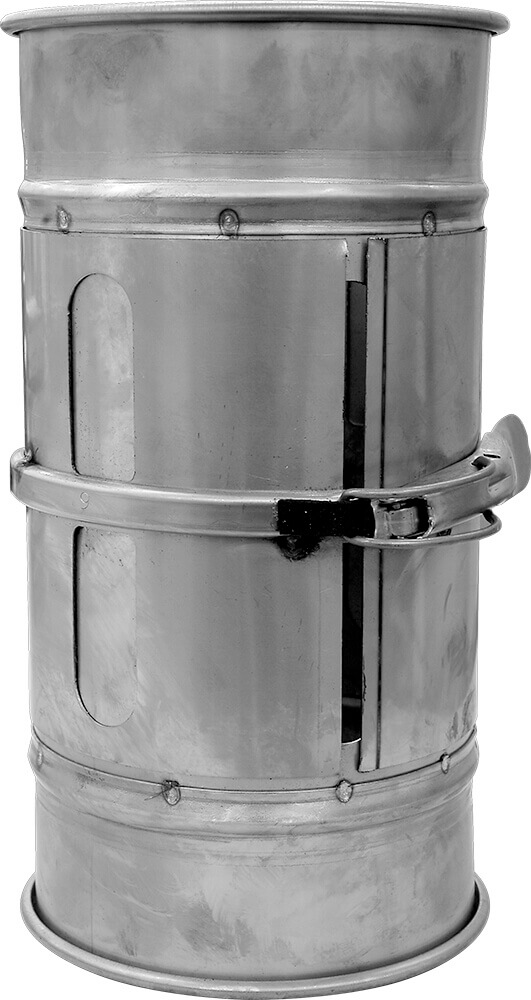

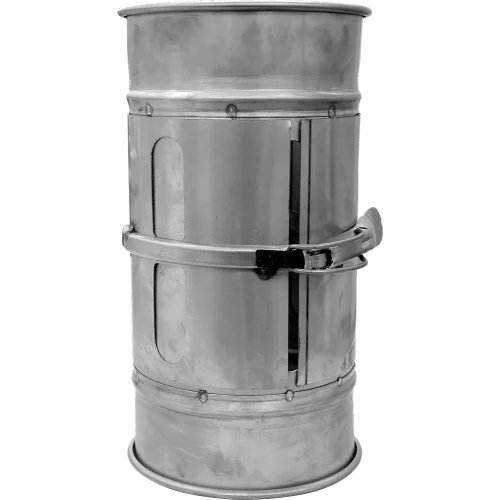

Bleed-in Valve

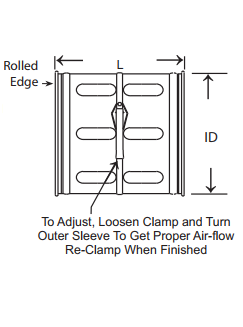

Bleed-in valves are used to adjust air flow to balance systems by introducing ambient air. Nordfab bleed in valves are now available in Galvanized, Aluminum, Stainless, and Stainless+ with optional no. 4 finish.

Nordfab Ducting Bleed In Valve Nordfab Ducting Bleed In Valve Manual

Construction:

  • Seam: longitudinal seam is solid laser welded for strength and to reduce leakage.
  • Collars: located on the exterior side of each port and considered as air flow non-directional. Collars have a laser welded longitudinal seam (exception: 3” collars are lapped, spot welded, and caulked.) If air flow directional product is required, it must be stated on the PO and additional cost may be incurred. A raised lap seam and spot weld are used for attaching the collar to the body and no caulking is used. If caulking is required, additional cost may be incurred.
  • Display: All | Galvanized | Stainless
    Search Sku:
    Search Filter: On

    The items displayed below are only those that match the above Search Sku filter.
    Clear the filter and display all parts.

    Part #/Description Price
    3207-0300-10000
    03" BLEED-IN VALVE, GALVANIZED STEEL
    L=11"
    $92.70
    3207-0300-20000
    03" BLEED-IN VALVE, 304 STAINLESS STEEL
    L=11"
    $158.70
    3207-0400-10000
    04" BLEED-IN VALVE, GALVANIZED STEEL
    L=11"
    $92.70
    3207-0400-20000
    04" BLEED-IN VALVE, 304 STAINLESS STEEL
    L=11"
    $158.70
    3207-0500-10000
    05" BLEED-IN VALVE, GALVANIZED STEEL
    L=11"
    $106.50
    3207-0500-20000
    05" BLEED-IN VALVE, 304 STAINLESS STEEL
    L=11"
    $182.70
    3207-0600-10000
    06" BLEED-IN VALVE, GALVANIZED STEEL
    L=11"
    $110.80
    3207-0600-20000
    06" BLEED-IN VALVE, 304 STAINLESS STEEL
    L=11"
    $190.20
    3207-0700-10000
    07" BLEED-IN VALVE, GALVANIZED STEEL
    L=11"
    $119.30
    3207-0700-20000
    07" BLEED-IN VALVE, 304 STAINLESS STEEL
    L=11"
    $204.60
    3207-0800-10000
    08" BLEED-IN VALVE, GALVANIZED STEEL
    L=11"
    $123.20
    3207-0800-20000
    08" BLEED-IN VALVE, 304 STAINLESS STEEL
    L=11"
    $211.40
    3207-0900-10000
    09" BLEED-IN VALVE, GALVANIZED STEEL
    L=11"
    $135.70
    3207-0900-20000
    09" BLEED-IN VALVE, 304 STAINLESS STEEL
    L=11"
    $232.60
    3207-1000-10000
    10" BLEED-IN VALVE, GALVANIZED STEEL
    L=11"
    $144.30
    3207-1000-20000
    10" BLEED-IN VALVE, 304 STAINLESS STEEL
    L=11"
    $247.30
    3207-1100-10000
    11" BLEED-IN VALVE, GALVANIZED STEEL
    L=11"
    $150.80
    3207-1100-20000
    11" BLEED-IN VALVE, 304 STAINLESS STEEL
    L=11"
    $259.20
    3207-1200-10000
    12" BLEED-IN VALVE, GALVANIZED STEEL
    L=11"
    $150.80
    3207-1200-20000
    12" BLEED-IN VALVE, 304 STAINLESS STEEL
    L=11"
    $259.20
    3207-1300-10000
    13" BLEED-IN VALVE, GALVANIZED STEEL
    L=11"
    $166.00
    3207-1300-20000
    13" BLEED-IN VALVE, 304 STAINLESS STEEL
    L=11"
    $285.40
    3207-1400-10000
    14" BLEED-IN VALVE, GALVANIZED STEEL
    L=11"
    $166.00
    3207-1400-20000
    14" BLEED-IN VALVE, 304 STAINLESS STEEL
    L=11"
    $285.40
    3207-1500-10000
    15" BLEED-IN VALVE, GALVANIZED STEEL
    L=11"
    $182.10
    3207-1500-20000
    15" BLEED-IN VALVE, 304 STAINLESS STEEL
    L=11"
    $312.10
    3207-1600-10000
    16" BLEED-IN VALVE, GALVANIZED STEEL
    L=11"
    $182.10
    3207-1600-20000
    16" BLEED-IN VALVE, 304 STAINLESS STEEL
    L=11"
    $312.10
    3207-1700-10000
    17" BLEED-IN VALVE, GALVANIZED STEEL
    L=11"
    $203.30
    3207-1700-20000
    17" BLEED-IN VALVE, 304 STAINLESS STEEL
    L=11"
    $348.90
    3207-1800-10000
    18" BLEED-IN VALVE, GALVANIZED STEEL
    L=11"
    $203.30
    3207-1800-20000
    18" BLEED-IN VALVE, 304 STAINLESS STEEL
    L=11"
    $348.90
    3207-2000-10000
    20" BLEED-IN VALVE, GALVANIZED STEEL
    L=11"
    $235.20
    3207-2000-20000
    20" BLEED-IN VALVE, 304 STAINLESS STEEL
    L=11"
    $404.20
    3207-2200-10000
    22" BLEED-IN VALVE, GALVANIZED STEEL
    L=11"
    $261.70
    3207-2200-20000
    22" BLEED-IN VALVE, 304 STAINLESS STEEL
    L=11"
    $449.30
    3207-2400-10000
    24" BLEED-IN VALVE, GALVANIZED STEEL
    L=11"
    $300.70
    3207-2400-20000
    24" BLEED-IN VALVE, 304 STAINLESS STEEL
    L=11"
    $516.90
    Note Icon Custom Notes:


    ORDERING NOTES: Unless specified, 3" through 24" is QF. Over 24" is flanged. Data subject to change without notice. Stainless steel components requiring flanges will be supplied with stainless steel flanges unless otherwise specified. For special parts or items to be custom manufactured, contact us for quotation.
