Adjustable Nipples

Nordfab Adjustable Nipples, also known as adjustable sleeves, are designed to instantaneously provide variable length adjustments in quick-fit pipe duct lines. Available in galvanized or stainless steel, Nordfab adjustable nipples feature laser-welded seams and include a standard Black O-ring to provide seal. If you're working with a higher temperature application, you can request a Red O-ring at an additional cost.

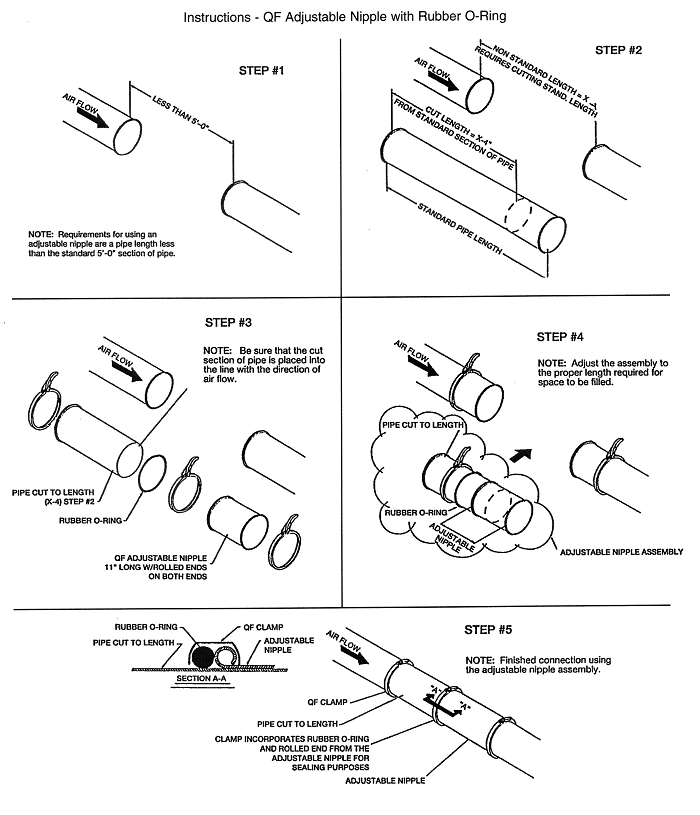

Below is an example of how to use a Nordfab Adjustable Nipple or you can download QF Adjustable Nipple with O-ring Dry System instructions.

* Add To Cart *
Display: All | Galvanized | Stainless
Search Sku:
Part #/Description Price Qty
3202-0300-10000
03" ADJ. NIPPLE, GALVANIZED STEEL
11 1/4" LENGTH
$19.20
3202-0300-20000
03" ADJ. NIPPLE, 304 STAINLESS STEEL
11 1/4" LENGTH
$43.60
3202-0400-10000
04" ADJ. NIPPLE, GALVANIZED STEEL
11 1/4" LENGTH
$19.20
3202-0400-20000
04" ADJ. NIPPLE, 304 STAINLESS STEEL
11 1/4" LENGTH
$43.60
3202-0500-10000
05" ADJ. NIPPLE, GALVANIZED STEEL
11 1/4" LENGTH
$19.60
3202-0500-20000
05" ADJ. NIPPLE, 304 STAINLESS STEEL
11 1/4" LENGTH
$44.90
3202-0600-10000
06" ADJ. NIPPLE, GALVANIZED STEEL
11 1/4" LENGTH
$20.20
3202-0600-20000
06" ADJ. NIPPLE, 304 STAINLESS STEEL
11 1/4" LENGTH
$47.40
3202-0700-10000
07" ADJ. NIPPLE, GALVANIZED STEEL
11 1/8" LENGTH
$24.20
3202-0700-20000
07" ADJ. NIPPLE, 304 STAINLESS STEEL
11 1/8" LENGTH
$55.70
3202-0800-10000
08" ADJ. NIPPLE, GALVANIZED STEEL
11" LENGTH
$24.70
3202-0800-20000
08" ADJ. NIPPLE, 304 STAINLESS STEEL
11" LENGTH
$56.90
3202-0900-10000
09" ADJ. NIPPLE, GALVANIZED STEEL
11" LENGTH
$26.00
3202-0900-20000
09" ADJ. NIPPLE, 304 STAINLESS STEEL
11" LENGTH
$58.90
3202-1000-10000
10" ADJ. NIPPLE, GALVANIZED STEEL
10 7/8" LENGTH
$26.50
3202-1000-20000
10" ADJ. NIPPLE, 304 STAINLESS STEEL
10 7/8" LENGTH
$61.40
3202-1100-10000
11" ADJ. NIPPLE, GALVANIZED STEEL
10 5/8" LENGTH
$30.30
3202-1100-20000
11" ADJ. NIPPLE, 304 STAINLESS STEEL
10 5/8" LENGTH
$70.60
3202-1200-10000
12" ADJ. NIPPLE, GALVANIZED STEEL
10 5/8" LENGTH
$30.30
3202-1200-20000
12" ADJ. NIPPLE, 304 STAINLESS STEEL
10 5/8" LENGTH
$70.60
3202-1300-10000
13" ADJ. NIPPLE, GALVANIZED STEEL
10 5/8" LENGTH
$41.00
3202-1300-20000
13" ADJ. NIPPLE, 304 STAINLESS STEEL
10 5/8" LENGTH
$96.10
3202-1400-10000
14" ADJ. NIPPLE, GALVANIZED STEEL
10 5/8" LENGTH
$41.00
3202-1400-20000
14" ADJ. NIPPLE, 304 STAINLESS STEEL
10 5/8" LENGTH
$96.10
3202-1500-10000
15" ADJ. NIPPLE, GALVANIZED STEEL
10 5/8" LENGTH
$47.10
3202-1500-20000
15" ADJ. NIPPLE, 304 STAINLESS STEEL
10 5/8" LENGTH
$110.90
3202-1600-10000
16" ADJ. NIPPLE, GALVANIZED STEEL
10 5/8" LENGTH
$47.10
3202-1600-20000
16" ADJ. NIPPLE, 304 STAINLESS STEEL
10 5/8" LENGTH
$110.90
3202-1700-10000
17" ADJ. NIPPLE, GALVANIZED STEEL
10 5/8" LENGTH
$55.00
3202-1700-20000
17" ADJ. NIPPLE, 304 STAINLESS STEEL
10 5/8" LENGTH
$127.10
3202-1800-10000
18" ADJ. NIPPLE, GALVANIZED STEEL
10 5/8" LENGTH
$55.00
3202-1800-20000
18" ADJ. NIPPLE, 304 STAINLESS STEEL
10 5/8" LENGTH
$127.10
3202-2000-10000
20" ADJ. NIPPLE, GALVANIZED STEEL
10 5/8" LENGTH
$67.40
3202-2000-20000
20" ADJ. NIPPLE, 304 STAINLESS STEEL
10 5/8" LENGTH
$154.90
3202-2200-10000
22" ADJ. NIPPLE, GALVANIZED STEEL
10 5/8" LENGTH
$79.70
3202-2200-20000
22" ADJ. NIPPLE, 304 STAINLESS STEEL
10 5/8" LENGTH
$182.70
3202-2400-10000
24" ADJ. NIPPLE, GALVANIZED STEEL
10 5/8" LENGTH
$91.70
3202-2400-20000
24" ADJ. NIPPLE, 304 STAINLESS STEEL
10 5/8" LENGTH
$210.20
Note Icon Custom Notes:


ORDERING NOTES: Unless specified, 3" through 24" is QF. Over 24" is flanged. Data subject to change without notice. Stainless steel components requiring flanges will be supplied with stainless steel flanges unless otherwise specified. For special parts or items to be custom manufactured, contact us for quotation.
