Slotted Fume Hood

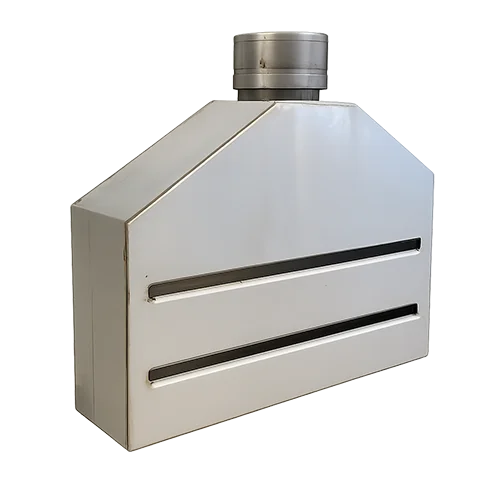

Nordfab Ducting Slotted Fume Hood

Slotted Fume Hoods are ideal as a capture mechanism for fumes produced by welding, grinding, buffing, etc. Unlike a standard fume hood, a slotted fume hood is more energy efficient and cost effective by creating a more restrictive and faster airflow pattern from a smaller fan. They are cheaper than a downdraft table solution, and more user-friendly than a source capture mechanism.

Notes:

  • These items are not made by Nordfab, but they do work with the Nordfab clamping system.
  • A typical lead-time for this product is 2-4 Weeks
  • Slotted Hood Depth - 6" for all models - construction is 18 ga welded paint grip
  • Slotted Hood Performance is based on 23rd edition - industrial ventilation guidelines
  • Pressure drop calculations based on recommended CFM
  • Pressure drop will vary if alternate CFM is used
  • Custom sizes, side skirts and/or adjustable slots available, call for details

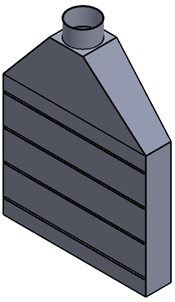

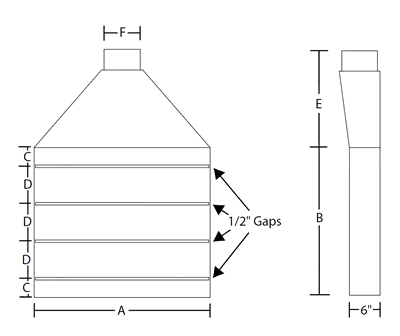

Nordfab Ducting Slotted Fume Hood illustration Nordfab Ducting Slotted Fume Hood dimensions

Technical Specifications

Model A B C D E F CFM Guidelines P.D. Weight
SIS-SFH-34 34" 29" 3 3/8" 6 3/4" 15" 7" 1050 .67" 114 lbs
SIS-SFH-46 46" 35" 4 1/8" 8 1/4" 21" 8" 1400 .70" 142 lbs
SIS-SFH-58 58" 58" 4 1/2" 9" 27" 8" 1750 .82" 150 lbs

PDF Specifications PDF

Display: All | Galvanized | Stainless
Search Sku:
Search Filter: On

The items displayed below are only those that match the above Search Sku filter.
Clear the filter and display all parts.

Part #/Description Price
SIS-SFH-34
34" Wide Slotted Fume Hood - 18ga Galvanized
$362.00
SIS-SFH-34-S
34" Wide Slotted Fume Hood - 18ga 304 Stainless Steel, Welded and Polished
$2257.00
SIS-SFH-46
46" Wide Slotted Fume Hood - 18ga Galvanized
$550.00
SIS-SFH-46-S
46" Wide Slotted Fume Hood - 18ga 304 Stainless Steel, Welded and Polished
$2655.00
SIS-SFH-58
58" Wide Slotted Fume Hood - 18ga Galvanized
$982.00
SIS-SFH-58-S
58" Wide Slotted Fume Hood - 18ga 304 Stainless Steel, Welded and Polished
$2983.00
Note Icon Custom Notes:


ORDERING NOTES: Unless specified, 3" through 24" is QF. Over 24" is flanged. Data subject to change without notice. Stainless steel components requiring flanges will be supplied with stainless steel flanges unless otherwise specified. For special parts or items to be custom manufactured, contact us for quotation.
