Spark Trap

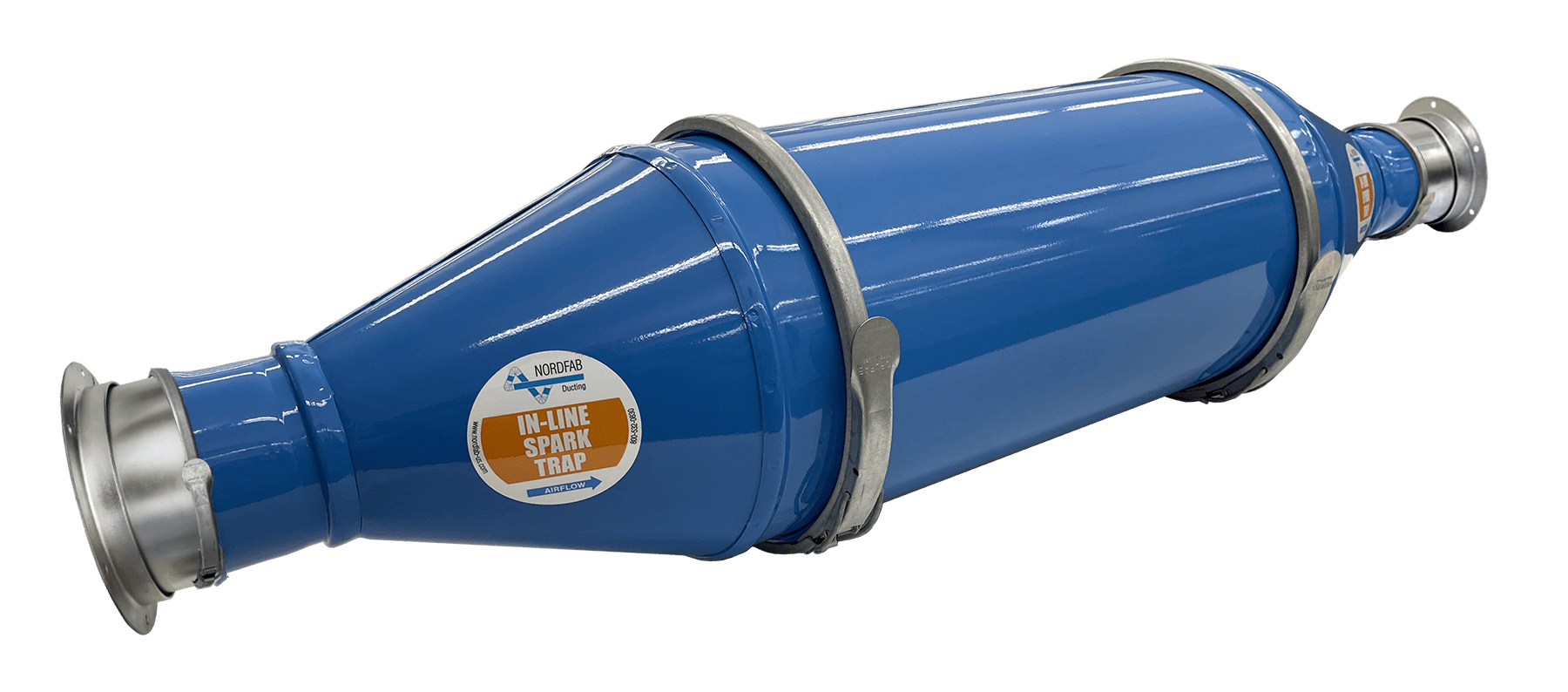

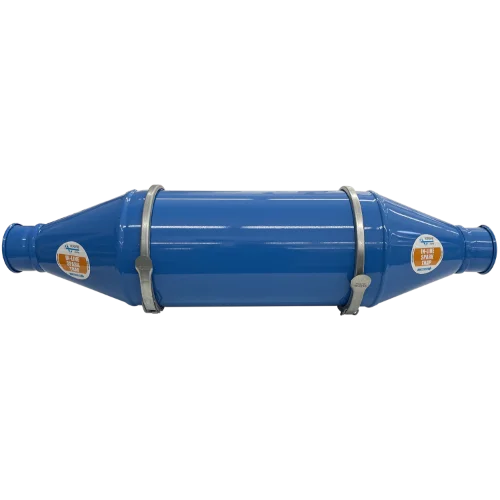

Nordfab Ducting Inline Spark Trap

Nordfab® Inline Spark Trap (4" - 24")

Installed in ducting as part of a dust collection system, the Nordfab In-line Spark Trap 2.0 greatly reduces the possibility of fire in cyclones / collectors by decreasing the number of sparks which could reach the cyclone or collector through the ductwork.

The spark trap’s effectiveness is based on a simple principle — disrupting the laminar airflow to cause sparks to cool and extinguish before they can enter a cyclone / collector. There are no moving parts and no power is required for operation. Pressure loss is minimal.*

*The unit does not create a secondary dust collection point.

NOTE: The Nordfab In-line Spark Trap is not a replacement for spark detection or explosion isolation systems. Complementary device only.

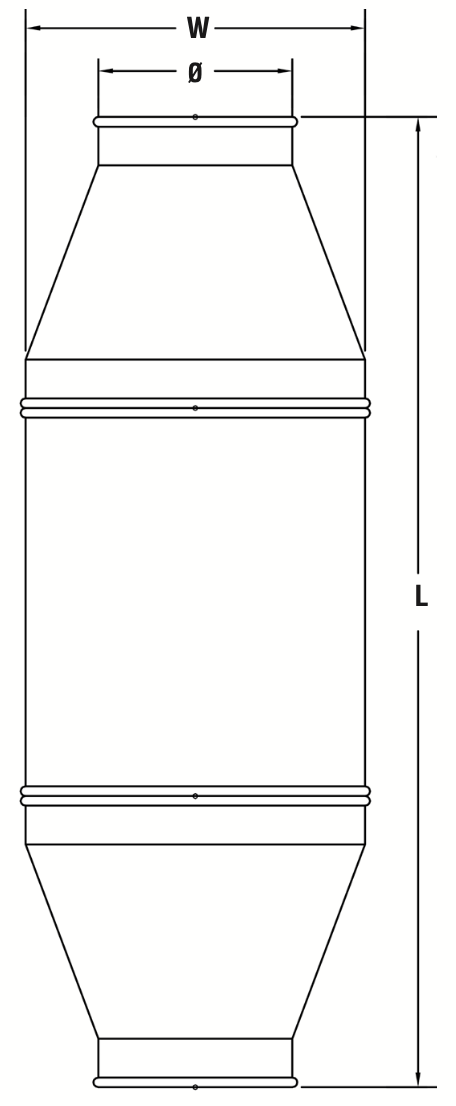

Nordfab Ducting Spark Trap dimensions
Download the Spec Sheet: Spark-Trap.pdf

Display: All | Galvanized | Stainless
Search Sku:
Search Filter: On

The items displayed below are only those that match the above Search Sku filter.
Clear the filter and display all parts.

Part #/Description Price
3255-0400-10000
04" IN-LINE SPARK TRAP, POWDER-COATED STEEL, QUICK-FIT STYLE
W=10" L=40"
$913.80
3255-0400-1000AF
04" IN-LINE SPARK TRAP, POWDER-COATED STEEL, ANGLE FLANGE ASSEMBLY
W=10" L=40"
$987.80
3255-0500-10000
05" IN-LINE SPARK TRAP, POWDER-COATED STEEL, QUICK-FIT STYLE
W=11" L=40"
$1072.80
3255-0500-1000AF
05" IN-LINE SPARK TRAP, POWDER-COATED STEEL, ANGLE FLANGE ASSEMBLY
W=11" L=40"
$1152.20
3255-0600-10000
06" IN-LINE SPARK TRAP, POWDER-COATED STEEL, QUICK-FIT STYLE
W=12" L=40"
$1313.90
3255-0600-1000AF
06" IN-LINE SPARK TRAP, POWDER-COATED STEEL, ANGLE FLANGE ASSEMBLY
W=12" L=40"
$1402.30
3255-0700-10000
07" IN-LINE SPARK TRAP, POWDER-COATED STEEL, QUICK-FIT STYLE
W=13" L=44"
$1542.60
3255-0700-1000AF
07" IN-LINE SPARK TRAP, POWDER-COATED STEEL, ANGLE FLANGE ASSEMBLY
W=13" L=44"
$1635.20
3255-0800-10000
08" IN-LINE SPARK TRAP, POWDER-COATED STEEL, QUICK-FIT STYLE
W=14" L=44"
$1750.90
3255-0800-1000AF
08" IN-LINE SPARK TRAP, POWDER-COATED STEEL, ANGLE FLANGE ASSEMBLY
W=14" L=44"
$1854.70
3255-0900-10000
09" IN-LINE SPARK TRAP, POWDER-COATED STEEL, QUICK-FIT STYLE
W=15" L=44"
$1853.10
3255-0900-1000AF
09" IN-LINE SPARK TRAP, POWDER-COATED STEEL, ANGLE FLANGE ASSEMBLY
W=15" L=44"
$1964.10
3255-1000-10000
10" IN-LINE SPARK TRAP, POWDER-COATED STEEL, QUICK-FIT STYLE
W=16" L=44"
$1979.70
3255-1000-1000AF
10" IN-LINE SPARK TRAP, POWDER-COATED STEEL, ANGLE FLANGE ASSEMBLY
W=16" L=44"
$2104.90
3255-1100-10000
11" IN-LINE SPARK TRAP, POWDER-COATED STEEL, ANGLE FLANGE ASSEMBLY
W=17" L=44"
$2114.60
3255-1100-1000AF
11" IN-LINE SPARK TRAP, POWDER-COATED STEEL, ANGLE FLANGE ASSEMBLY
W=17" L=44"
$2264.40
3255-1200-10000
12" IN-LINE SPARK TRAP, POWDER-COATED STEEL, QUICK-FIT STYLE
W=18" L=44"
$2114.60
3255-1200-1000AF
12" IN-LINE SPARK TRAP, POWDER-COATED STEEL, ANGLE FLANGE ASSEMBLY
W=18" L=44"
$2264.40
3255-1300-10000
13" IN-LINE SPARK TRAP, POWDER-COATED STEEL, ANGLE FLANGE ASSEMBLY
W=19" L=48"
$2582.40
3255-1300-1000AF
13" IN-LINE SPARK TRAP, POWDER-COATED STEEL, ANGLE FLANGE ASSEMBLY
W=19" L=48"
$2758.40
3255-1400-10000
14" IN-LINE SPARK TRAP, POWDER-COATED STEEL, QUICK-FIT STYLE
W=20" L=48"
$2582.40
3255-1400-1000AF
14" IN-LINE SPARK TRAP, POWDER-COATED STEEL, ANGLE FLANGE ASSEMBLY
W=20" L=48"
$2758.40
3255-1500-10000
15" IN-LINE SPARK TRAP, POWDER-COATED STEEL, ANGLE FLANGE ASSEMBLY
W=21" L=48"
$2875.80
3255-1500-1000AF
15" IN-LINE SPARK TRAP, POWDER-COATED STEEL, ANGLE FLANGE ASSEMBLY
W=21" L=48"
$3097.80
3255-1600-10000
16" IN-LINE SPARK TRAP, POWDER-COATED STEEL, QUICK-FIT STYLE
W=22" L=48"
$2875.80
3255-1600-1000AF
16" IN-LINE SPARK TRAP, POWDER-COATED STEEL, ANGLE FLANGE ASSEMBLY
W=22" L=48"
$3097.80
3255-1700-10000
17" IN-LINE SPARK TRAP, POWDER-COATED STEEL, ANGLE FLANGE ASSEMBLY
W=23" L=48"
$3235.00
3255-1700-1000AF
17" IN-LINE SPARK TRAP, POWDER-COATED STEEL, ANGLE FLANGE ASSEMBLY
W=23" L=48"
$3467.60
3255-1800-10000
18" IN-LINE SPARK TRAP, POWDER-COATED STEEL, QUICK-FIT STYLE
W=24" L=48"
$3235.00
3255-1800-1000AF
18" IN-LINE SPARK TRAP, POWDER-COATED STEEL, ANGLE FLANGE ASSEMBLY
W=24" L=48"
$3467.60
3255-1900-10000
19" IN-LINE SPARK TRAP, POWDER-COATED STEEL, ANGLE FLANGE ASSEMBLY
W=25" L=48"
$3594.40
3255-1900-1000AF
19" IN-LINE SPARK TRAP, POWDER-COATED STEEL, ANGLE FLANGE ASSEMBLY
W=25" L=48"
$3837.40
3255-2000-10000
20" IN-LINE SPARK TRAP, POWDER-COATED STEEL, QUICK-FIT STYLE
W=26" L=48"
$3594.40
3255-2000-1000AF
20" IN-LINE SPARK TRAP, POWDER-COATED STEEL, ANGLE FLANGE ASSEMBLY
W=26" L=48"
$3837.40
3255-2200-10000
22" IN-LINE SPARK TRAP, POWDER-COATED STEEL, QUICK-FIT STYLE
W=28" L=48"
$3954.10
3255-2200-1000AF
22" IN-LINE SPARK TRAP, POWDER-COATED STEEL, ANGLE FLANGE ASSEMBLY
W=28" L=48"
$4219.50
3255-2400-10000
24" IN-LINE SPARK TRAP, POWDER-COATED STEEL, QUICK-FIT STYLE
W=30" L=48"
$4313.30
3255-2400-1000AF
24" IN-LINE SPARK TRAP, POWDER-COATED STEEL, ANGLE FLANGE ASSEMBLY
W=30" L=48"
$4601.70
Note Icon Custom Notes:


ORDERING NOTES: Unless specified, 3" through 24" is QF. Over 24" is flanged. Data subject to change without notice. Stainless steel components requiring flanges will be supplied with stainless steel flanges unless otherwise specified. For special parts or items to be custom manufactured, contact us for quotation.
