In-cut

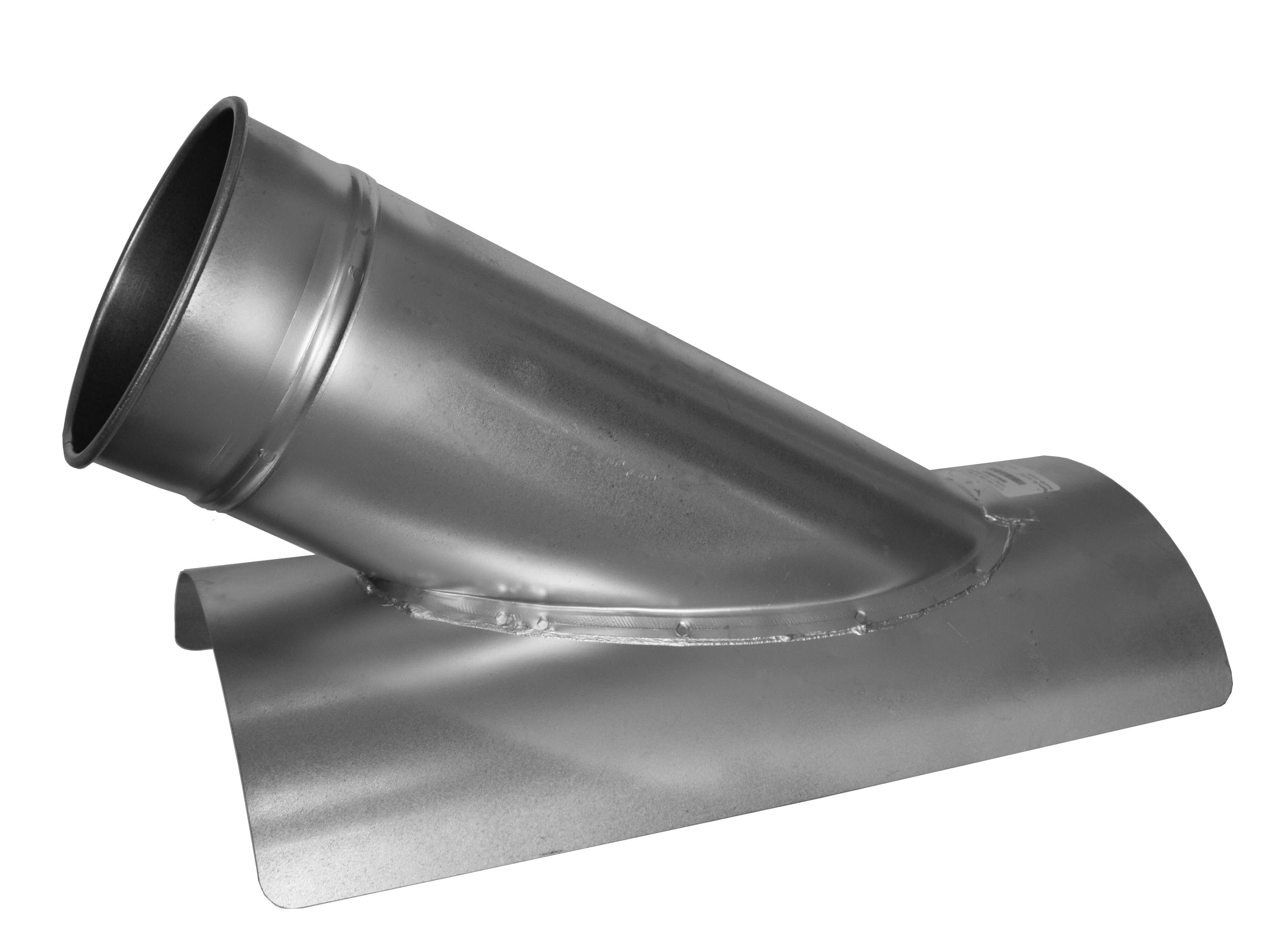

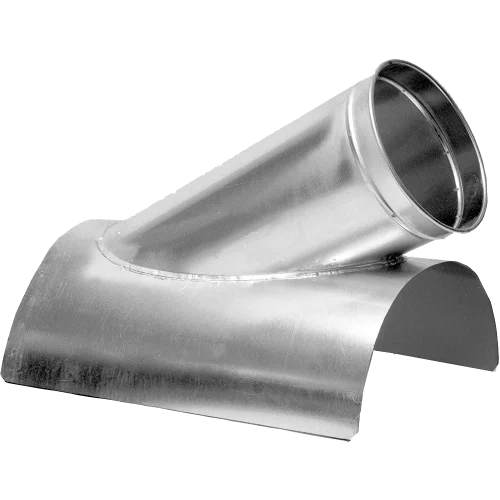

Nordfab® Quick-Fit® In-cut duct fittings are designed to cut into existing lines to being a QF system. Quick Fit In-cuts are standard 30° or optional 45°. Now available in galvanized, aluminum, stainless and stainless+ with optional no. 4 finish.

Note: QF® (standard), Flange, Raw available


Construction:
  • Seam: longitudinal seam is lapped, spot welded, and caulked
  • Collars: located on the exterior side of each port and considered as air flow non-directional. Collars have a laser welded longitudinal seam (exception: 3" collars are lapped, spot welded, and caulked.) If air flow directional product is required, it must be stated on the PO and additional cost may be incurred. A raised lap seam and spot weld are used for attaching the collar to the body and no caulking is used. If caulking is required, additional cost may be incurred

  • Price based on the B Dimension. Dimension B is provided. Must provide A dimension.

    Display: All | Galvanized | Stainless
    Search Sku:
    Search Filter: On

    The items displayed below are only those that match the above Search Sku filter.
    Clear the filter and display all parts.

    Part #/Description Price
    3223-XX03-10000
    03" IN-CUT, GALVANIZED STEEL
    A= B=
    $60.20
    3223-XX03-20000
    03" IN-CUT, 304 STAINLESS STEEL
    A= B=
    $118.50
    3223-XX04-10000
    04" IN-CUT, GALVANIZED STEEL
    A= B=
    $60.20
    3223-XX04-20000
    04" IN-CUT, 304 STAINLESS STEEL
    A= B=
    $118.50
    3223-XX05-10000
    05" IN-CUT, GALVANIZED STEEL
    A= B=
    $61.70
    3223-XX05-20000
    05" IN-CUT, 304 STAINLESS STEEL
    A= B=
    $121.60
    3223-XX06-10000
    06" IN-CUT, GALVANIZED STEEL
    A= B=
    $66.20
    3223-XX06-20000
    06" IN-CUT, 304 STAINLESS STEEL
    A= B=
    $128.80
    3223-XX07-10000
    07" IN-CUT, GALVANIZED STEEL
    A= B=
    $70.10
    3223-XX07-20000
    07" IN-CUT, 304 STAINLESS STEEL
    A= B=
    $137.20
    3223-XX08-10000
    08" IN-CUT, GALVANIZED STEEL
    A= B=
    $73.40
    3223-XX08-20000
    08" IN-CUT, 304 STAINLESS STEEL
    A= B=
    $143.80
    3223-XX09-10000
    09" IN-CUT, GALVANIZED STEEL
    A= B=
    $76.60
    3223-XX09-20000
    09" IN-CUT, 304 STAINLESS STEEL
    A= B=
    $151.70
    3223-XX10-10000
    10" IN-CUT, GALVANIZED STEEL
    A= B=
    $82.90
    3223-XX10-20000
    10" IN-CUT, 304 STAINLESS STEEL
    A= B=
    $161.90
    3223-XX11-10000
    11" IN-CUT, GALVANIZED STEEL
    A= B=
    $89.20
    3223-XX11-20000
    11" IN-CUT, 304 STAINLESS STEEL
    A= B=
    $179.20
    3223-XX12-10000
    12" IN-CUT, GALVANIZED STEEL
    A= B=
    $89.20
    3223-XX12-20000
    12" IN-CUT, 304 STAINLESS STEEL
    A= B=
    $173.20
    3223-XX13-10000
    13" IN-CUT, GALVANIZED STEEL
    A= B=
    $101.00
    3223-XX13-20000
    13" IN-CUT, 304 STAINLESS STEEL
    A= B=
    $198.10
    3223-XX14-10000
    14" IN-CUT, GALVANIZED STEEL
    A= B=
    $101.00
    3223-XX14-20000
    14" IN-CUT, 304 STAINLESS STEEL
    A= B=
    $198.10
    3223-XX15-10000
    15" IN-CUT, GALVANIZED STEEL
    A= B=
    $113.90
    3223-XX15-20000
    15" IN-CUT, 304 STAINLESS STEEL
    A= B=
    $222.20
    3223-XX16-10000
    16" IN-CUT, GALVANIZED STEEL
    A= B=
    $113.90
    3223-XX16-20000
    16" IN-CUT, 304 STAINLESS STEEL
    A= B=
    $222.20
    3223-XX17-10000
    17" IN-CUT, GALVANIZED STEEL
    A= B=
    $126.40
    3223-XX17-20000
    17" IN-CUT, 304 STAINLESS STEEL
    A= B=
    $248.00
    3223-XX18-10000
    18" IN-CUT, GALVANIZED STEEL
    A= B=
    $126.40
    3223-XX18-20000
    18" IN-CUT, 304 STAINLESS STEEL
    A= B=
    $248.00
    3223-XX20-10000
    20" IN-CUT, GALVANIZED STEEL
    A= B=
    $200.90
    3223-XX20-20000
    20" IN-CUT, 304 STAINLESS STEEL
    A= B=
    $396.50
    3223-XX22-10000
    22" IN-CUT, GALVANIZED STEEL
    A= B=
    $276.40
    3223-XX22-20000
    22" IN-CUT, 304 STAINLESS STEEL
    A= B=
    $646.30
    3223-XX24-10000
    24" IN-CUT, GALVANIZED STEEL
    A= B=
    $318.10
    3223-XX24-20000
    24" IN-CUT, 304 STAINLESS STEEL
    A= B=
    $743.20
    3223-XX26-10000
    26" IN-CUT, GALVANIZED STEEL
    A= B=
    $400.80
    3223-XX26-20000
    26" IN-CUT, 304 STAINLESS STEEL
    A= B=
    $1081.00
    3223-XX28-10000
    28" IN-CUT, GALVANIZED STEEL
    A= B=
    $438.20
    3223-XX28-20000
    28" IN-CUT, 304 STAINLESS STEEL
    A= B=
    $1176.60
    3223-XX30-10000
    30" IN-CUT, GALVANIZED STEEL
    A= B=
    $484.70
    3223-XX30-20000
    30" IN-CUT, 304 STAINLESS STEEL
    A= B=
    $1272.60
    3223-XX32-10000
    32" IN-CUT, GALVANIZED STEEL
    A= B=
    $531.50
    3223-XX32-20000
    32" IN-CUT, 304 STAINLESS STEEL
    A= B=
    $1298.40
    3223-XX34-10000
    34" IN-CUT, GALVANIZED STEEL
    A= B=
    $644.00
    3223-XX34-20000
    34" IN-CUT, 304 STAINLESS STEEL
    A= B=
    $1343.20
    3223-XX36-10000
    36" IN-CUT, GALVANIZED STEEL
    A= B=
    $710.00
    3223-XX36-20000
    36" IN-CUT, 304 STAINLESS STEEL
    A= B=
    $1375.50
    3223-XX38-10000
    38" IN-CUT, GALVANIZED STEEL
    A= B=
    $749.50
    3223-XX38-20000
    38" IN-CUT, 304 STAINLESS STEEL
    A= B=
    $1519.50
    3223-XX40-10000
    40" IN-CUT, GALVANIZED STEEL
    A= B=
    $788.60
    3223-XX40-20000
    40" IN-CUT, 304 STAINLESS STEEL
    A= B=
    $1617.10
    NOTE: Due to rising costs, Nordfab is currently applying a 25% Material Surcharge. Learn More
    Required Dimensions: (2)
    A
    Size =

    B
    Size = provided
    Style:


    Note Icon Custom Notes:
    * Flanged style requires the additional cost of the flange piece ( part #3261 ). The price of the part will automatically be adjusted when it is added to the cart.
