Silencers

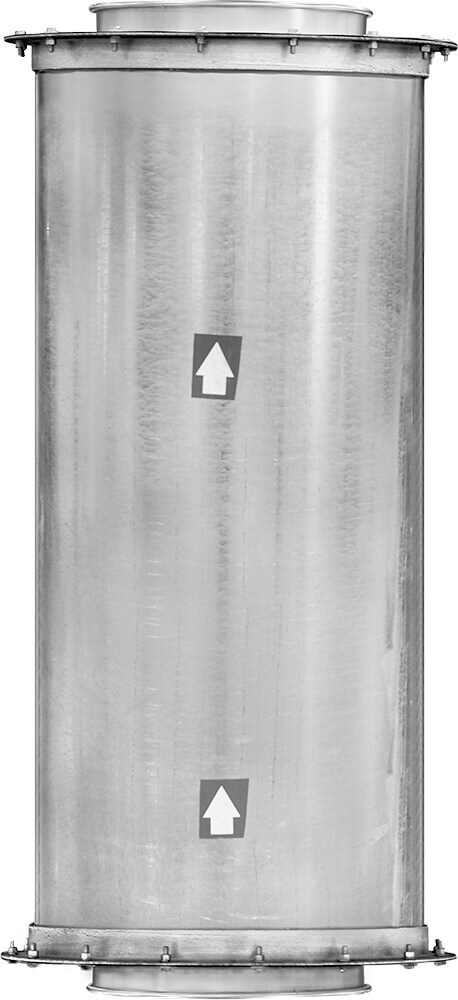

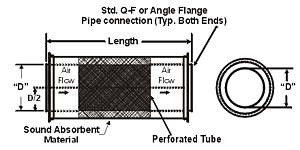

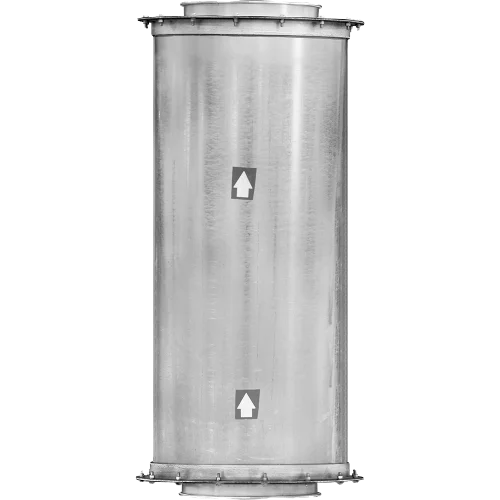

Nordfab Ducting Silencer dimensions Nordfab Ducting Silencer

Silencers significantly reduce the noise in a dust collection system, improving sound levels from fans and equipment. Silencers are now available in galvanized, aluminum, stainless and stainless+ with optional no. 4 finish.

Notes:

  • Other sizes available upon request
  • Air flow directional: Arrows are painted on product for ease of installation
  • Construction:
    • Outer Tube: On 14" dia. pipe and all smaller sizes, longitudinal seam is laser welded. On 15" and greater, seam is lock formed
    • Ends: Standard QF end can be changed to Raw ID (RAWID), Raw OD (RAWOD), No Fitting (NF), Hose Adapter (RAWFLEX), Flat Flange (FFL), Angle Flange (ANGFL), or Van Stone (VANSTONE)
  • Display: All | Galvanized | Stainless
    Search Sku:
    Search Filter: On

    The items displayed below are only those that match the above Search Sku filter.
    Clear the filter and display all parts.

    Part #/Description Price
    3106-0300-10000
    3" SILENCER, GALVANIZED STEEL
    24" LENGTH
    $761.80
    3106-0300-20000
    3" SILENCER, 304 STAINLESS STEEL
    24" LENGTH
    $1436.20
    3106-0400-10000
    4" SILENCER, GALVANIZED STEEL
    24" LENGTH
    $794.40
    3106-0400-20000
    4" SILENCER, 304 STAINLESS STEEL
    24" LENGTH
    $1497.60
    3106-0500-10000
    5" SILENCER, GALVANIZED STEEL
    24" LENGTH
    $819.90
    3106-0500-20000
    5" SILENCER, 304 STAINLESS STEEL
    24" LENGTH
    $1544.90
    3106-0600-10000
    6" SILENCER, GALVANIZED STEEL
    26" LENGTH
    $851.80
    3106-0600-20000
    6" SILENCER, 304 STAINLESS STEEL
    26" LENGTH
    $1605.10
    3106-0700-10000
    7" SILENCER, GALVANIZED STEEL
    26" LENGTH
    $996.20
    3106-0700-20000
    7" SILENCER, 304 STAINLESS STEEL
    26" LENGTH
    $1877.30
    3106-0800-10000
    8" SILENCER, GALVANIZED STEEL
    31" LENGTH
    $1178.60
    3106-0800-20000
    8" SILENCER, 304 STAINLESS STEEL
    31" LENGTH
    $2221.10
    3106-0900-10000
    9" SILENCER, GALVANIZED STEEL
    36" LENGTH
    $1270.00
    3106-0900-20000
    9" SILENCER, 304 STAINLESS STEEL
    36" LENGTH
    $2393.20
    3106-1000-10000
    10" SILENCER, GALVANIZED STEEL
    44" LENGTH
    $1391.50
    3106-1000-20000
    10" SILENCER, 304 STAINLESS STEEL
    44" LENGTH
    $2622.50
    3106-1200-10000
    12" SILENCER, GALVANIZED STEEL
    50" LENGTH
    $1444.60
    3106-1200-20000
    12" SILENCER, 304 STAINLESS STEEL
    50" LENGTH
    $2722.70
    3106-1400-10000
    14" SILENCER, GALVANIZED STEEL
    54" LENGTH
    $1535.70
    3106-1400-20000
    14" SILENCER, 304 STAINLESS STEEL
    54" LENGTH
    $2894.50
    3106-1600-10000
    16" SILENCER, GALVANIZED STEEL
    60" LENGTH
    $1741.20
    3106-1600-20000
    16" SILENCER, 304 STAINLESS STEEL
    60" LENGTH
    $3281.50
    3106-1800-10000
    18" SILENCER, GALVANIZED STEEL
    60" LENGTH
    $1887.00
    3106-1800-20000
    18" SILENCER, 304 STAINLESS STEEL
    60" LENGTH
    $3914.30
    3106-2000-10000
    20" SILENCER, GALVANIZED STEEL
    60" LENGTH
    $2212.60
    3106-2000-20000
    20" SILENCER, 304 STAINLESS STEEL
    60" LENGTH
    $4169.90
    3106-2200-10000
    22" SILENCER, GALVANIZED STEEL
    60" LENGTH
    $2395.10
    3106-2200-20000
    22" SILENCER, 304 STAINLESS STEEL
    60" LENGTH
    $4514.10
    3106-2400-10000
    24" SILENCER, GALVANIZED STEEL
    60" LENGTH
    $2603.10
    3106-2400-20000
    24" SILENCER, 304 STAINLESS STEEL
    60" LENGTH
    $4906.20
    3106-2600-10000
    26" SILENCER, GALVANIZED STEEL
    60" LENGTH
    $3906.00
    3106-2600-20000
    26" SILENCER, 304 STAINLESS STEEL
    60" LENGTH
    $7361.10
    3106-2800-10000
    28" SILENCER, GALVANIZED STEEL
    60" LENGTH
    $3935.90
    3106-2800-20000
    28" SILENCER, 304 STAINLESS STEEL
    60" LENGTH
    $7417.80
    3106-3000-10000
    30" SILENCER, GALVANIZED STEEL
    60" LENGTH
    $4016.00
    3106-3000-20000
    30" SILENCER, 304 STAINLESS STEEL
    60" LENGTH
    $7568.60
    3106-3200-10000
    32" SILENCER, GALVANIZED STEEL
    60" LENGTH
    $4135.00
    3106-3200-20000
    32" SILENCER, 304 STAINLESS STEEL
    60" LENGTH
    $7793.00
    3106-3400-10000
    34" SILENCER, GALVANIZED STEEL
    60" LENGTH
    $4176.60
    3106-3400-20000
    34" SILENCER, 304 STAINLESS STEEL
    60" LENGTH
    $7871.50
    3106-3600-10000
    36" SILENCER, GALVANIZED STEEL
    60" LENGTH
    $4977.20
    3106-3600-20000
    36" SILENCER, 304 STAINLESS STEEL
    60" LENGTH
    $9379.80
    3106-3800-10000
    38" SILENCER, GALVANIZED STEEL
    60" LENGTH
    $5086.40
    3106-3800-20000
    38" SILENCER, 304 STAINLESS STEEL
    60" LENGTH
    $9586.30
    3106-4000-10000
    40" SILENCER, GALVANIZED STEEL
    60" LENGTH
    $5122.80
    3106-4000-20000
    40" SILENCER, 304 STAINLESS STEEL
    60" LENGTH
    $9654.20
    Required Dimensions: (1)
    A
    Size = provided
    Style:


    Note Icon Custom Notes:
    * Flanged style requires the additional cost of the flange piece ( part #3261 ). The price of the part will automatically be adjusted when it is added to the cart.


    ORDERING NOTES: Unless specified, 3" through 24" is QF. Over 24" is flanged. Data subject to change without notice. Stainless steel components requiring flanges will be supplied with stainless steel flanges unless otherwise specified. For special parts or items to be custom manufactured, contact us for quotation.
