Canopy Hood

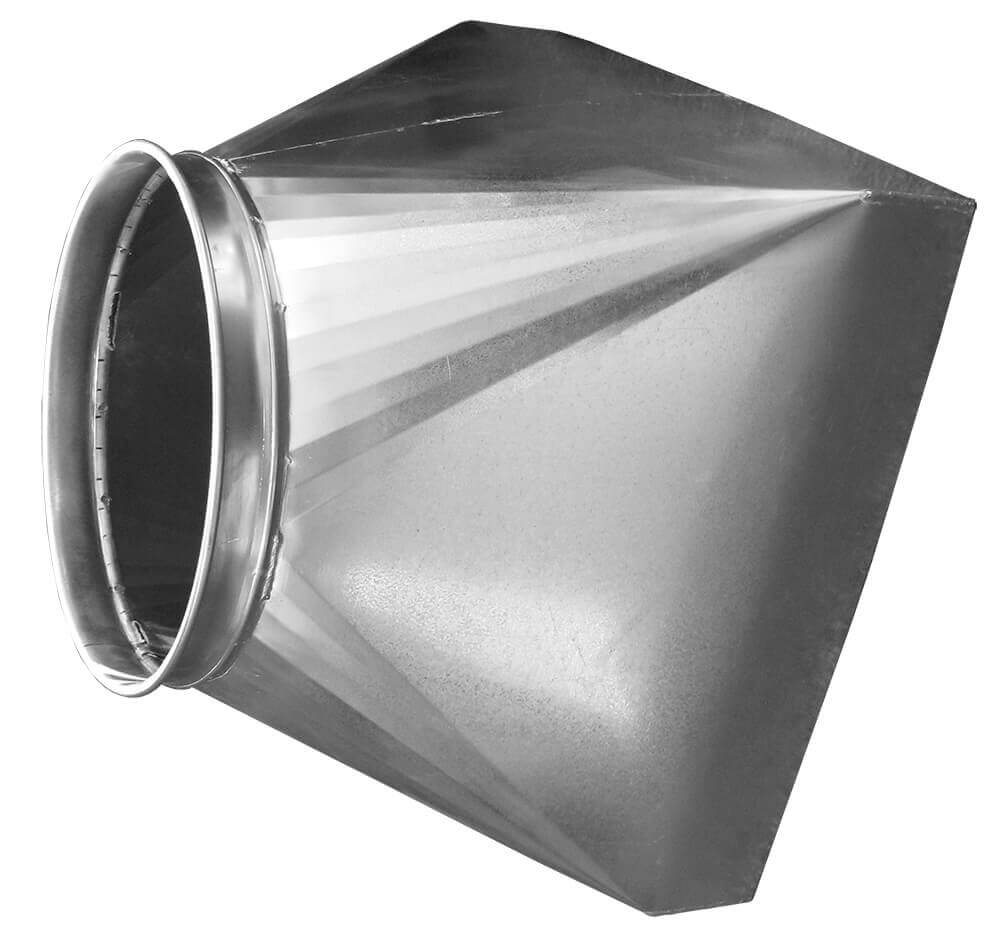

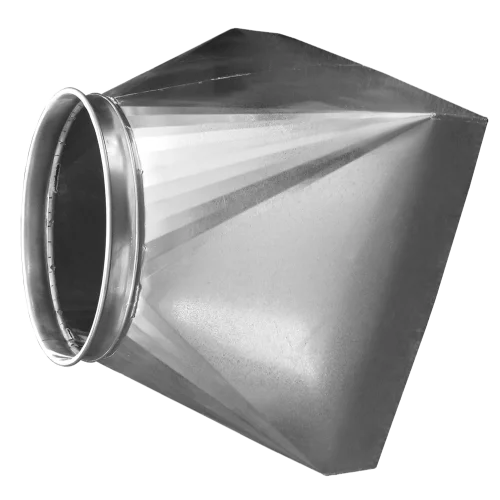

Nordfab Ducting Canopy Hood

Canopy hoods are constructed of stainless steel and feature a hemmed end. If flange is required, please see transitions duct parts. Specify opening size: 18" square, 24" square, 36" square, or 48" square. Other sizes upon request (max. size 72" x 48").

Notes:

  • Hood Design Basis: 150 fpm capture velocity, 2 ft. distance from source
  • Construction:

    • Seam: is lapped, spot welded, and caulked
    • Collars: located on the exterior side of each port and considered as air flow non-directional. Collars have a laser welded longitudinal seam (exception: 3" collars are lapped, spot welded, and caulked.) If air flow directional product is required, it must be stated on the PO and additional cost may be incurred. A raised lap seam and spot weld are used for attaching the collar to the body and no caulking is used. If caulking is required, additional cost may be incurred

    Display: All | Galvanized | Stainless
    Search Sku:
    Search Filter: On

    The items displayed below are only those that match the above Search Sku filter.
    Clear the filter and display all parts.

    Part #/Description Price
    3270-1818-10000
    CANOPY HOOD 18" SQ. TO 16QF, GALVANIZED STEEL
    $287.80
    3270-1818-20000
    CANOPY HOOD 18" SQ. TO 16QF, 304 STAINLESS STEEL
    $625.30
    3270-2424-10000
    CANOPY HOOD 24" SQ. TO 16QF, GALVANIZED STEEL.
    $526.00
    3270-2424-20000
    CANOPY HOOD 24" SQ. TO 16QF, 304 STAINLESS STEEL
    $1140.80
    3270-3636-10000
    CANOPY HOOD 36" SQ. TO 18QF, GALVANIZED STEEL.
    $1360.30
    3270-3636-20000
    CANOPY HOOD 36" SQ. TO 18QF, 304 STAINLESS STEEL
    $2939.80
    3270-4848-10000
    CANOPY HOOD 48" SQ. TO 18QF, GALVANIZED STEEL.
    $2419.00
    3270-4848-20000
    CANOPY HOOD 48" SQ. TO 18QF, 304 STAINLESS STEEL
    $5228.30
    Note Icon Custom Notes:


    ORDERING NOTES: Unless specified, 3" through 24" is QF. Over 24" is flanged. Data subject to change without notice. Stainless steel components requiring flanges will be supplied with stainless steel flanges unless otherwise specified. For special parts or items to be custom manufactured, contact us for quotation.
