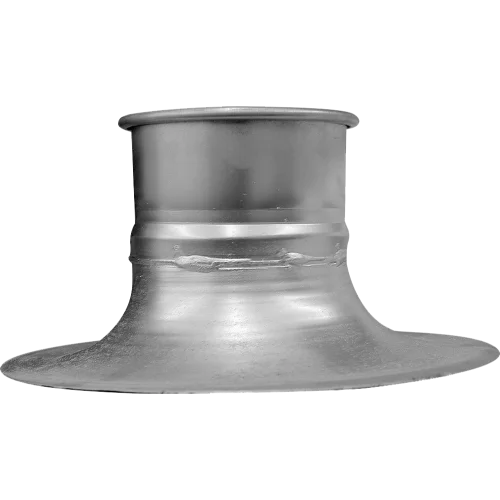

Bell Mouth Adapter

ACS carries Nordfab Quick-Fit Bell Mouth Adapters which are designed with a flared end to increase the capture ratio of smoke, dust, and air, as well as, expand laminar air flow. The Quick-Fit rolled edge ends allow for a seamless connection to Nordfab duct fittings. Now available in galvanized, aluminum, stainless and stainless+ with optional no. 4 finish.

Notes:

  • QF (standard), Flange, Raw
  • 20 gauge
  • At temperatures ranging between 390° F and 480° F, the zinc-iron alloy layers in galvanized steel will continue to provide a high level of protection from corrosion. However, there may be some peeling, changes in mechanical properties, and reduction in the corrosion protection. Recommended max. service temperature is 390° F.
  • Construction:

    • Bell: constructed from a solid sheet so no seams are present in the bell portion. The bell begins as 18 gauge and thickness cannot be changed
    • Collars: have a laser welded longitudinal seam (exception: 3" collars are lapped, spot welded, and caulked.) Collars are attached to the body using a raised hemmed, spot welded seamed construction and are caulked.

    * Add To Cart *
    Display: All | Galvanized | Stainless
    Search Sku:
    Part #/Description Price Qty
    3251-0300-10000
    03" BELL MOUTH ADAPTER, GALVANIZED STEEL
    $87.60
    3251-0300-20000
    03" BELL MOUTH ADAPTER, 304 STAINLESS STEEL
    $150.50
    3251-0400-10000
    04" BELL MOUTH ADAPTER, GALVANIZED STEEL
    $87.60
    3251-0400-20000
    04" BELL MOUTH ADAPTER, 304 STAINLESS STEEL
    $150.50
    3251-0500-10000
    05" BELL MOUTH ADAPTER, GALVANIZED STEEL
    $101.70
    3251-0500-20000
    05" BELL MOUTH ADAPTER, 304 STAINLESS STEEL
    $174.40
    3251-0600-10000
    06" BELL MOUTH ADAPTER, GALVANIZED STEEL
    $111.30
    3251-0600-20000
    06" BELL MOUTH ADAPTER, 304 STAINLESS STEEL
    $191.30
    3251-0700-10000
    07" BELL MOUTH ADAPTER, GALVANIZED STEEL
    $119.00
    3251-0700-20000
    07" BELL MOUTH ADAPTER, 304 STAINLESS STEEL
    $204.20
    3251-0800-10000
    08" BELL MOUTH ADAPTER, GALVANIZED STEEL
    $127.70
    3251-0800-20000
    08" BELL MOUTH ADAPTER, 304 STAINLESS STEEL
    $219.20
    3251-0900-10000
    09" BELL MOUTH ADAPTER, GALVANIZED STEEL
    $139.50
    3251-0900-20000
    09" BELL MOUTH ADAPTER, 304 STAINLESS STEEL
    $239.70
    3251-1000-10000
    10" BELL MOUTH ADAPTER, GALVANIZED STEEL
    $150.20
    3251-1000-20000
    10" BELL MOUTH ADAPTER, 304 STAINLESS STEEL
    $258.10
    3251-1100-10000
    11" BELL MOUTH ADAPTER, GALVANIZED STEEL
    $179.60
    3251-1100-20000
    11" BELL MOUTH ADAPTER, 304 STAINLESS STEEL
    $308.20
    3251-1200-10000
    12" BELL MOUTH ADAPTER, GALVANIZED STEEL
    $179.60
    3251-1200-20000
    12" BELL MOUTH ADAPTER, 304 STAINLESS STEEL
    $308.20
    3251-1300-10000
    13" BELL MOUTH ADAPTER, GALVANIZED STEEL
    $182.70
    3251-1300-20000
    13" BELL MOUTH ADAPTER, 304 STAINLESS STEEL
    $313.80
    3251-1400-10000
    14" BELL MOUTH ADAPTER, GALVANIZED STEEL
    $182.70
    3251-1400-20000
    14" BELL MOUTH ADAPTER, 304 STAINLESS STEEL
    $313.80
    3251-1500-10000
    15" BELL MOUTH ADAPTER, GALVANIZED STEEL
    $186.10
    3251-1500-20000
    15" BELL MOUTH ADAPTER, 304 STAINLESS STEEL
    $319.50
    3251-1600-10000
    16" BELL MOUTH ADAPTER, GALVANIZED STEEL
    $186.10
    3251-1600-20000
    16" BELL MOUTH ADAPTER, 304 STAINLESS STEEL
    $319.50
    3251-1700-10000
    17" BELL MOUTH ADAPTER, GALVANIZED STEEL
    $215.20
    3251-1700-20000
    17" BELL MOUTH ADAPTER, 304 STAINLESS STEEL
    $369.60
    3251-1800-10000
    18" BELL MOUTH ADAPTER, GALVANIZED STEEL
    $215.20
    3251-1800-20000
    18" BELL MOUTH ADAPTER, 304 STAINLESS STEEL
    $369.60
    3251-2000-10000
    20" BELL MOUTH ADAPTER, GALVANIZED STEEL
    $244.30
    3251-2000-20000
    20" BELL MOUTH ADAPTER, 304 STAINLESS STEEL
    $419.70
    3251-2200-10000
    22" BELL MOUTH ADAPTER, GALVANIZED STEEL
    $273.40
    3251-2200-20000
    22" BELL MOUTH ADAPTER, 304 STAINLESS STEEL
    $469.90
    3251-2400-10000
    24" BELL MOUTH ADAPTER, GALVANIZED STEEL
    $314.70
    3251-2400-20000
    24" BELL MOUTH ADAPTER, 304 STAINLESS STEEL
    $540.30
    Note Icon Custom Notes:


    ORDERING NOTES: Unless specified, 3" through 24" is QF. Over 24" is flanged. Data subject to change without notice. Stainless steel components requiring flanges will be supplied with stainless steel flanges unless otherwise specified. For special parts or items to be custom manufactured, contact us for quotation.
