Branch

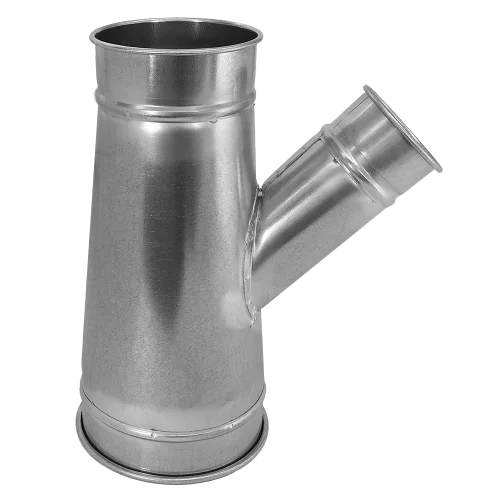

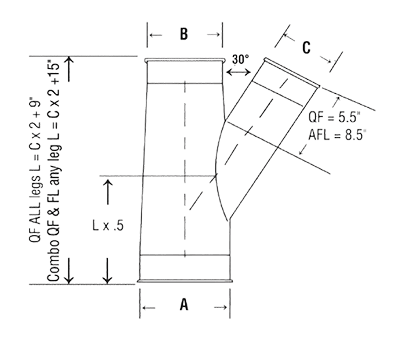

Nordfab Duct Branch Nordfab Duct Branch dimensions

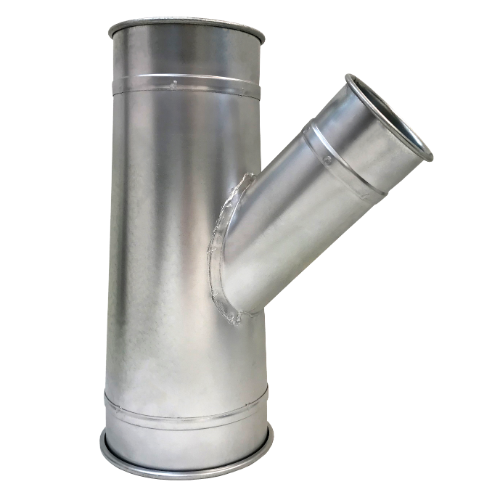

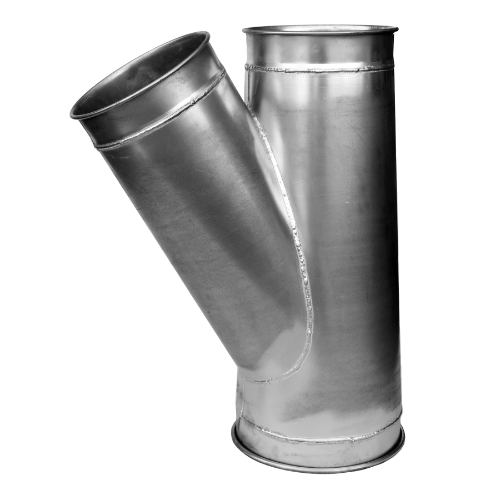

Duct Branches manufactured by Nordfab are made available in galvanized and stainless steel materials. They feature laser welded seams and rolled ends, and are designed as standard 30° Branches. 45° is available upon request.

Notes:

  • Designate A, B, C.
  • Branch priced by “A” dimension.
  • Above 24” available only in flange (The price of an angle flange will be added to all flanged ends.)
  • Construction:

    • Seam: longitudinal seam is lapped, spot welded, and caulked
    • Collars: located on the exterior side of each port and considered as air flow non-directional. Collars have a laser welded longitudinal seam (exception: 3” collars are lapped, spot welded, and caulked.) If air flow directional product is required, it must be stated on the PO and additional cost may be incurred. A raised lap seam and spot weld are used for attaching the collar to the body and no caulking is used. If caulking is required, additional cost may be incurred

    Display: All | Galvanized | Stainless
    Search Sku:
    Search Filter: On

    The items displayed below are only those that match the above Search Sku filter.
    Clear the filter and display all parts.

    Part #/Description Price
    3220-03XX-10000
    03" STANDARD BRANCH, GALVANIZED STEEL
    A= B= C=
    $173.00
    3220-03XX-20000
    03" STANDARD BRANCH, 304 STAINLESS STEEL
    A= B= C=
    $359.80
    3220-04XX-10000
    04" STANDARD BRANCH, GALVANIZED STEEL
    A= B= C=
    $173.00
    3220-04XX-20000
    04" STANDARD BRANCH, 304 STAINLESS STEEL
    A= B= C=
    $359.80
    3220-05XX-10000
    05" STANDARD BRANCH, GALVANIZED STEEL
    A= B= C=
    $182.30
    3220-05XX-20000
    05" STANDARD BRANCH, 304 STAINLESS STEEL
    A= B= C=
    $367.00
    3220-06XX-10000
    06" STANDARD BRANCH, GALVANIZED STEEL
    A= B= C=
    $188.40
    3220-06XX-20000
    06" STANDARD BRANCH, 304 STAINLESS STEEL
    A= B= C=
    $374.90
    3220-07XX-10000
    07" STANDARD BRANCH, GALVANIZED STEEL
    A= B= C=
    $191.40
    3220-07XX-20000
    07" STANDARD BRANCH, 304 STAINLESS STEEL
    A= B= C=
    $383.00
    3220-08XX-10000
    08" STANDARD BRANCH, GALVANIZED STEEL
    A= B= C=
    $195.80
    3220-08XX-20000
    08" STANDARD BRANCH, 304 STAINLESS STEEL
    A= B= C=
    $393.50
    3220-09XX-10000
    09" STANDARD BRANCH, GALVANIZED STEEL
    A= B= C=
    $205.00
    3220-09XX-20000
    09" STANDARD BRANCH, 304 STAINLESS STEEL
    A= B= C=
    $408.90
    3220-10XX-10000
    10" STANDARD BRANCH, GALVANIZED STEEL
    A= B= C=
    $218.70
    3220-10XX-20000
    10" STANDARD BRANCH, 304 STAINLESS STEEL
    A= B= C=
    $435.10
    3220-11XX-10000
    11" STANDARD BRANCH, GALVANIZED STEEL
    A= B= C=
    $243.00
    3220-11XX-20000
    11" STANDARD BRANCH, 304 STAINLESS STEEL
    A= B= C=
    $486.60
    3220-12XX-10000
    12" STANDARD BRANCH, GALVANIZED STEEL
    A= B= C=
    $243.00
    3220-12XX-20000
    12" STANDARD BRANCH, 304 STAINLESS STEEL
    A= B= C=
    $486.60
    3220-13XX-10000
    13" STANDARD BRANCH, GALVANIZED STEEL
    A= B= C=
    $285.00
    3220-13XX-20000
    13" STANDARD BRANCH, 304 STAINLESS STEEL
    A= B= C=
    $573.20
    3220-14XX-10000
    14" STANDARD BRANCH, GALVANIZED STEEL
    A= B= C=
    $285.00
    3220-14XX-20000
    14" STANDARD BRANCH, 304 STAINLESS STEEL
    A= B= C=
    $573.20
    3220-15XX-10000
    15" STANDARD BRANCH, GALVANIZED STEEL
    A= B= C=
    $328.10
    3220-15XX-20000
    15" STANDARD BRANCH, 304 STAINLESS STEEL
    A= B= C=
    $659.20
    3220-16XX-10000
    16" STANDARD BRANCH, GALVANIZED STEEL
    A= B= C=
    $328.10
    3220-16XX-20000
    16" STANDARD BRANCH, 304 STAINLESS STEEL
    A= B= C=
    $659.20
    3220-17XX-10000
    17" STANDARD BRANCH, GALVANIZED STEEL
    A= B= C=
    $357.00
    3220-17XX-20000
    17" STANDARD BRANCH, 304 STAINLESS STEEL
    A= B= C=
    $719.20
    3220-18XX-10000
    18" STANDARD BRANCH, GALVANIZED STEEL
    A= B= C=
    $357.00
    3220-18XX-20000
    18" STANDARD BRANCH, 304 STAINLESS STEEL
    A= B= C=
    $719.20
    3220-20XX-10000
    20" STANDARD BRANCH, GALVANIZED STEEL
    A= B= C=
    $429.70
    3220-20XX-20000
    20" STANDARD BRANCH, 304 STAINLESS STEEL
    A= B= C=
    $855.70
    3220-22XX-10000
    22" STANDARD BRANCH, GALVANIZED STEEL
    A= B= C=
    $540.40
    3220-22XX-20000
    22" STANDARD BRANCH, 304 STAINLESS STEEL
    A= B= C=
    $1077.10
    3220-24XX-10000
    24" STANDARD BRANCH, GALVANIZED STEEL
    A= B= C=
    $621.40
    3220-24XX-20000
    24" STANDARD BRANCH, 304 STAINLESS STEEL
    A= B= C=
    $1238.50
    3220-26XX-10000
    26" STANDARD BRANCH, GALVANIZED STEEL
    A= B= C=
    $527.90
    3220-26XX-20000
    26" STANDARD BRANCH, 304 STAINLESS STEEL
    A= B= C=
    $1144.60
    3220-28XX-10000
    28" STANDARD BRANCH, GALVANIZED STEEL
    A= B= C=
    $675.00
    3220-28XX-20000
    28" STANDARD BRANCH, 304 STAINLESS STEEL
    A= B= C=
    $1242.80
    3220-30XX-10000
    30" STANDARD BRANCH, GALVANIZED STEEL
    A= B= C=
    $759.10
    3220-30XX-20000
    30" STANDARD BRANCH, 304 STAINLESS STEEL
    A= B= C=
    $1356.80
    3220-32XX-10000
    32" STANDARD BRANCH, GALVANIZED STEEL
    A= B= C=
    $850.10
    3220-32XX-20000
    32" STANDARD BRANCH, 304 STAINLESS STEEL
    A= B= C=
    $1419.40
    3220-34XX-10000
    34" STANDARD BRANCH, GALVANIZED STEEL
    A= B= C=
    $946.00
    3220-34XX-20000
    34" STANDARD BRANCH, 304 STAINLESS STEEL
    A= B= C=
    $1511.30
    3220-36XX-10000
    36" STANDARD BRANCH, GALVANIZED STEEL
    A= B= C=
    $1041.80
    3220-36XX-20000
    36" STANDARD BRANCH, 304 STAINLESS STEEL
    A= B= C=
    $1557.30
    3220-38XX-10000
    38" STANDARD BRANCH, GALVANIZED STEEL
    A= B= C=
    $1146.70
    3220-38XX-20000
    38" STANDARD BRANCH, 304 STAINLESS STEEL
    A= B= C=
    $1680.20
    3220-40XX-10000
    40" STANDARD BRANCH, GALVANIZED STEEL
    A= B= C=
    $1258.90
    3220-40XX-20000
    40" STANDARD BRANCH, 304 STAINLESS STEEL
    A= B= C=
    $1772.30
    Required Dimensions: (3)
    A
    Size = provided
    Style:


    B
    Size =
    Style:


    C
    Size =
    Style:


    Note Icon Custom Notes:
    * Flanged style requires the additional cost of the flange piece ( part #3261 ). The price of the part will automatically be adjusted when it is added to the cart.


    ORDERING NOTES: Unless specified, 3" through 24" is QF. Over 24" is flanged. Data subject to change without notice. Stainless steel components requiring flanges will be supplied with stainless steel flanges unless otherwise specified. For special parts or items to be custom manufactured, contact us for quotation.
