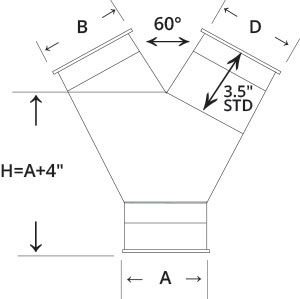

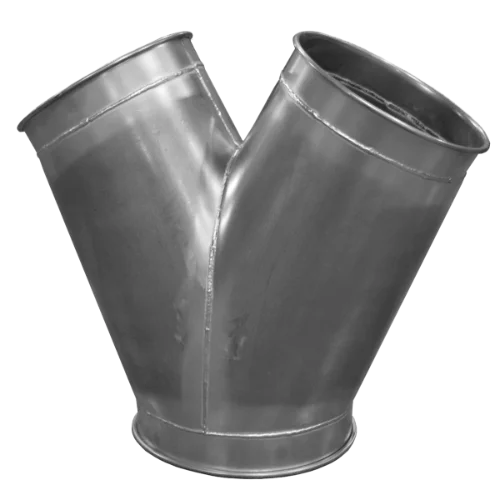

Nordfab Quick-Fit duct branches in Y shape are now available in galvanized, aluminum, stainless and stainless+ with optional no. 4 finish. When ordering specify A, B, D.. All branches are priced by the large end A. Both B & D each must be at least 50% of A, with B or D being at least 80% of the opposite leg.
End Style: QF (standard), Flange, Raw
B + D >= A
Use formula above to determine if a reducer is needed at "B" and/or "D". Flange Leg: Length= 4.5" AND Height= A+4"
If A-B or D desired in flange, add price or flange and denote by FL after dimension for which flange is needed.
On sizes above 24", "A" is flanged. Add the cost of flange if "B" or "D" require flanges.
ORDERING NOTES: Unless specified, 3" through 24" is QF. Over 24" is flanged. Data subject to change without notice. Stainless steel components requiring flanges will be supplied with stainless steel flanges unless otherwise specified. For special parts or items to be custom manufactured, contact us for quotation.
