Flanged Pipe

* Scroll To Cart *
Tech Data Sheet

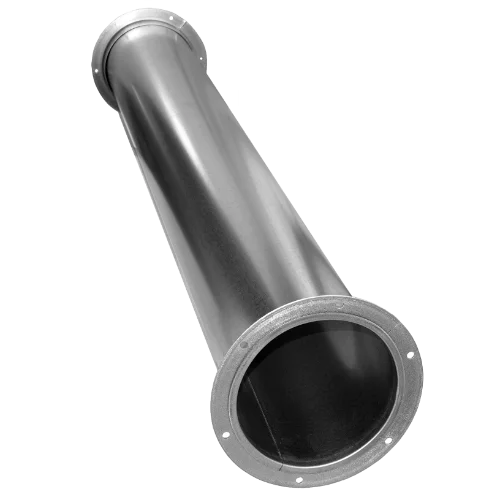

Nordfab Flanged Duct Pipes, now constructed with a longitudinal laser welded seam, are designed for applications requiring ducting pipe sizes that are larger than a 24" diameter or where flanged connections are required. Nordfab Flanged Pipes include Van Stone Angle Flanges on both ends. Use with Nordfab's Angle Flange Adapter for easy connection to QF Pipes. Now available in galvanized, aluminum, stainless and stainless+ with optional no. 4 finish.

Notes:

  • Please note standard length is now 59" long
  • Laser welded seams standard on sizes 4" to 24"
  • Plasma welded seams on sizes 3", and 24" or larger
  • Angle flanged (AF) end can be modified to a 3/16" thick flat flange (FFL) to match your hole pattern or can be No Fitting (NF)
  • Angle flange is retained via 3/8" Van Stone lip - angle flange is floating for easier assembly

    • Display: All | Galvanized | Stainless
    Search Sku:
    Search Filter: On

    The items displayed below are only those that match the above Search Sku filter.
    Clear the filter and display all parts.

    Part #/Description Price
    3201-03LW-10000
    03" x 59" LONG FLANGED PIPE, GALVANIZED STEEL
    22 GAUGE
    LASER WELDED    		 $49.80
    3201-03LW-20000
    03" x 59" LONG FLANGED PIPE, 304 STAINLESS STEEL
    22 GAUGE
    LASER WELDED    		 $166.00
    3201-04LW-10000
    04" x 59" LONG FLANGED PIPE, GALVANIZED STEEL
    22 GAUGE
    LASER WELDED    		 $67.20
    3201-04LW-20000
    04" x 59 " LONG FLANGED PIPE, 304 STAINLESS STEEL
    22 GAUGE
    LASER WELDED    		 $166.00
    3201-05LW-10000
    05" x 59" LONG FLANGED PIPE, GALVANIZED STEEL
    20 GAUGE
    LASER WELDED    		 $67.60
    3201-05LW-20000
    05" x 59" LONG FLANGED PIPE, 304 STAINLESS STEEL
    22 GAUGE
    LASER WELDED    		 $198.60
    3201-06LW-10000
    06" x 59" LONG FLANGED PIPE, GALVANIZED STEEL
    20 GAUGE
    LASER WELDED    		 $74.20
    3201-06LW-20000
    06" x 59" LONG FLANGED PIPE, 304 STAINLESS STEEL
    22 GAUGE
    LASER WELDED    		 $203.50
    3201-07LW-10000
    07" x 59" LONG FLANGED PIPE, GALVANIZED STEEL
    20 GAUGE
    LASER WELDED    		 $83.80
    3201-07LW-20000
    07" x 59" LONG FLANGED PIPE, 304 STAINLESS STEEL
    22 GAUGE
    LASER WELDED    		 $238.40
    3201-08LW-10000
    08" x 59" LONG FLANGED PIPE, GALVANIZED STEEL
    20 GAUGE
    LASER WELDED    		 $93.10
    3201-08LW-20000
    08" x 59" LONG FLANGED PIPE, 304 STAINLESS STEEL
    22 GAUGE
    LASER WELDED    		 $240.70
    3201-09LW-10000
    09" x 59" LONG FLANGED PIPE, GALVANIZED STEEL
    20 GAUGE
    LASER WELDED    		 $96.80
    3201-09LW-20000
    09" x 59" LONG FLANGED PIPE, 304 STAINLESS STEEL
    22 GAUGE
    LASER WELDED    		 $241.60
    3201-10LW-10000
    10" x 59" LONG FLANGED PIPE, GALVANIZED STEEL
    20 GAUGE
    LASER WELDED    		 $111.80
    3201-10LW-20000
    10" x 59" LONG FLANGED PIPE, 304 STAINLESS STEEL
    22 GAUGE
    LASER WELDED    		 $272.60
    3201-11LW-10000
    11" x 59" LONG FLANGED PIPE, GALVANIZED STEEL
    20 GAUGE
    LASER WELDED    		 $130.30
    3201-11LW-20000
    11" x 59" LONG FLANGED PIPE, 304 STAINLESS STEEL
    22 GAUGE
    LASER WELDED    		 $323.20
    3201-12LW-10000
    12" x 59" LONG FLANGED PIPE, GALVANIZED STEEL
    20 GAUGE
    LASER WELDED    		 $130.30
    3201-12LW-20000
    12" x 59" LONG FLANGED PIPE, 304 STAINLESS STEEL
    20 GAUGE
    LASER WELDED    		 $323.20
    3201-13LW-10000
    13" x 59" LONG FLANGED PIPE, GALVANIZED STEEL
    20 GAUGE
    LASER WELDED    		 $147.20
    3201-13LW-20000
    13" x 59" LONG FLANGED PIPE, 304 STAINLESS STEEL
    20 GAUGE
    LASER WELDED    		 $364.20
    3201-14LW-10000
    14" x 59" LONG FLANGED PIPE, GALVANIZED STEEL
    20 GAUGE
    LASER WELDED    		 $147.20
    3201-14LW-20000
    14" x 59" LONG FLANGED PIPE, 304 STAINLESS STEEL
    20 GAUGE
    LASER WELDED    		 $364.20
    3201-15LW-10000
    15" x 59" LONG FLANGED PIPE, GALVANIZED STEEL
    20 GAUGE
    LASER WELDED    		 $206.50
    3201-15LW-20000
    15" x 59" LONG FLANGED PIPE, 304 STAINLESS STEEL
    20 GAUGE
    LASER WELDED    		 $416.70
    3201-16LW-10000
    16" x 59" LONG FLANGED PIPE, GALVANIZED STEEL
    20 GAUGE
    LASER WELDED    		 $206.50
    3201-16LW-20000
    16" x 59" LONG FLANGED PIPE, 304 STAINLESS STEEL
    20 GAUGE
    LASER WELDED    		 $416.70
    3201-17LW-10000
    17" x 59" LONG FLANGED PIPE, GALVANIZED STEEL
    20 GAUGE
    LASER WELDED    		 $214.70
    3201-17LW-20000
    17" x 59" LONG FLANGED PIPE, 304 STAINLESS STEEL
    20 GAUGE
    LASER WELDED    		 $579.00
    3201-18LW-10000
    18" x 59" LONG FLANGED PIPE, GALVANIZED STEEL
    20 GAUGE
    LASER WELDED    		 $214.70
    3201-18LW-20000
    18" x 59" LONG FLANGED PIPE, 304 STAINLESS STEEL
    20 GAUGE
    LASER WELDED    		 $579.00
    3201-20LW-10000
    20" x 59" LONG FLANGED PIPE, GALVANIZED STEEL
    20 GAUGE
    LASER WELDED    		 $265.40
    3201-20LW-20000
    20" x 59" LONG FLANGED PIPE, 304 STAINLESS STEEL
    20 GAUGE
    LASER WELDED    		 $579.60
    3201-22LW-10000
    22" x 59" LONG FLANGED PIPE, GALVANIZED STEEL
    20 GAUGE
    LASER WELDED    		 $289.90
    3201-22LW-20000
    22" x 59" LONG FLANGED PIPE, 304 STAINLESS STEEL
    20 GAUGE
    LASER WELDED    		 $626.90
    3201-24LW-10000
    24" x 59" LONG FLANGED PIPE, GALVANIZED STEEL
    20 GAUGE
    LASER WELDED    		 $312.20
    3201-24LW-20000
    24" x 59" LONG FLANGED PIPE, 304 STAINLESS STEEL
    20 GAUGE
    LASER WELDED    		 $721.60
    3201-2616-10000
    26" x 59" LONG FLANGED PIPE, GALVANIZED STEEL
    16 GAUGE
    PLASMA WELDED    		 $333.00
    3201-2616-20000
    26" x 59" LONG FLANGED PIPE, 304 STAINLESS STEEL
    16 GAUGE
    PLASMA WELDED    		 $1020.40
    3201-2816-10000
    28" x 59" LONG FLANGED PIPE, GALVANIZED STEEL
    16 GAUGE
    PLASMA WELDED    		 $361.40
    3201-2816-20000
    28" x 59" LONG FLANGED PIPE, 304 STAINLESS STEEL
    16 GAUGE
    PLASMA WELDED    		 $1027.50
    3201-3016-10000
    30" x 59" LONG FLANGED PIPE, GALVANIZED STEEL
    16 GAUGE
    PLASMA WELDED    		 $416.10
    3201-3016-20000
    30" x 59" LONG FLANGED PIPE, 304 STAINLESS STEEL
    16 GAUGE
    PLASMA WELDED    		 $1122.30
    3201-3216-10000
    32" x 59" LONG FLANGED PIPE, GALVANIZED STEEL
    16 GAUGE
    PLASMA WELDED    		 $433.80
    3201-3216-20000
    32" x 59" LONG FLANGED PIPE, 304 STAINLESS STEEL
    16 GAUGE
    PLASMA WELDED    		 $1131.00
    3201-3416-10000
    34" x 59" LONG FLANGED PIPE, GALVANIZED STEEL
    16 GAUGE
    PLASMA WELDED    		 $481.80
    3201-3416-20000
    34" x 59" LONG FLANGED PIPE, 304 STAINLESS STEEL
    16 GAUGE
    PLASMA WELDED    		 $1137.00
    3201-3616-10000
    36" x 59" LONG FLANGED PIPE, GALVANIZED STEEL
    16 GAUGE
    PLASMA WELDED    		 $514.70
    3201-3616-20000
    36" x 59" LONG FLANGED PIPE, 304 STAINLESS STEEL
    16 GAUGE
    PLASMA WELDED    		 $1209.80
    3201-3816-10000
    38" x 59" LONG FLANGED PIPE, GALVANIZED STEEL
    16 GAUGE
    PLASMA WELDED    		 $569.40
    3201-3816-20000
    38" x 59" LONG FLANGED PIPE, 304 STAINLESS STEEL
    16 GAUGE
    PLASMA WELDED    		 $1334.80
    3201-4016-10000
    40" x 59" LONG FLANGED PIPE, GALVANIZED STEEL
    16 GAUGE
    PLASMA WELDED    		 $657.20
    3201-4016-20000
    40" x 59" LONG FLANGED PIPE, 304 STAINLESS STEEL
    16 GAUGE
    PLASMA WELDED    		 $1492.60
    Show All Parts
