Mist Recycler

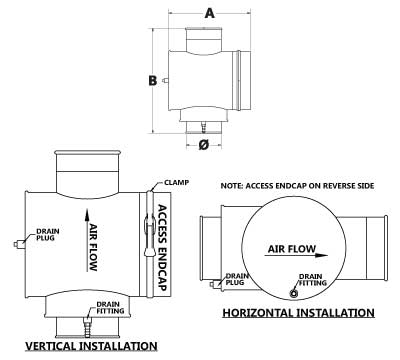

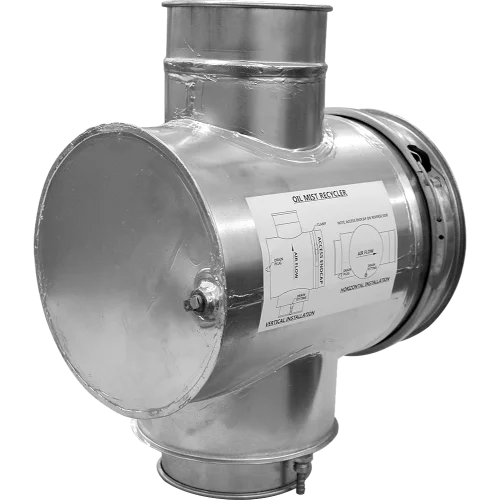

Nordfab Ducting Mist Recycler Nordfab Ducting Mist Recycler dimensions

Mist recyclers (MR) can extend filter media life, reduce maintenance costs and decrease issues caused by capturing and transporting large volumes of liquids to the collector. Now available in galvanized, aluminum, stainless and stainless+ with optional no. 4 finish.

Notes:

  • Extracts oil to minimize amount of oil flowing through entire system
  • Installs in vertical or horizontal applications
  • 5' clear hose and hose clamp included for drain tap
  • Construction

    • Constructed of 22ga thick Galvanized or SS, with lapped, spot welded, and epoxy caulked seams. The main body of the unit includes an end cap, clamp, and molded gasket for internal access and maintenance.

    Display: All | Galvanized | Stainless
    Search Sku:
    Search Filter: On

    The items displayed below are only those that match the above Search Sku filter.
    Clear the filter and display all parts.

    Part #/Description Price
    3192-0300-10000
    03" OIL MIST RECYCLER, GALVANIZED STEEL
    A=14" B=18" BAFFLE SIZE=10" x 14"
    $650.00
    3192-0300-20000
    03" OIL MIST RECYCLER, 304 STAINLESS STEEL
    A=14" B=18" BAFFLE SIZE=10" x 14"
    $1503.70
    3192-0400-10000
    04" OIL MIST RECYCLER, GALVANIZED STEEL
    A=14" B=18" BAFFLE SIZE=10" x 14"
    $650.00
    3192-0400-20000
    04" OIL MIST RECYCLER, 304 STAINLESS STEEL
    A=14" B=18" BAFFLE SIZE=10" x 14"
    $1503.70
    3192-0500-10000
    05" OIL MIST RECYCLER, GALVANIZED STEEL
    A=14" B=18" BAFFLE SIZE=10" x 14"
    $650.00
    3192-0500-20000
    05" OIL MIST RECYCLER, 304 STAINLESS STEEL
    A=14" B=18" BAFFLE SIZE=10" x 14"
    $1503.70
    3192-0600-10000
    06" OIL MIST RECYCLER, GALVANIZED STEEL
    A=14" B=18" BAFFLE SIZE=10" x 14"
    $650.00
    3192-0600-20000
    06" OIL MIST RECYCLER, 304 STAINLESS STEEL
    A=14" B=18" BAFFLE SIZE=10" x 14"
    $1503.70
    3192-0700-10000
    07" OIL MIST RECYCLER, GALVANIZED STEEL
    A=20" B=24" BAFFLE SIZE=16" x 20"
    $774.50
    3192-0700-20000
    07" OIL MIST RECYCLER, 304 STAINLESS STEEL
    A=20" B=24" BAFFLE SIZE=16" x 20"
    $1791.70
    3192-0800-10000
    08" OIL MIST RECYCLER, GALVANIZED STEEL
    A=20" B=24" BAFFLE SIZE=16" x 20"
    $774.50
    3192-0800-20000
    08" OIL MIST RECYCLER, 304 STAINLESS STEEL
    A=20" B=24" BAFFLE SIZE=16" x 20"
    $1791.70
    3192-0900-10000
    09" OIL MIST RECYCLER, GALVANIZED STEEL
    A=20" B=24" BAFFLE SIZE=16" x 20"
    $774.50
    3192-0900-20000
    09" OIL MIST RECYCLER, 304 STAINLESS STEEL
    A=20" B=24" BAFFLE SIZE=16" x 20"
    $1791.70
    3192-1000-10000
    10" OIL MIST RECYCLER, GALVANIZED STEEL
    A=20" B=24" BAFFLE SIZE=16" x 20"
    $774.50
    3192-1000-20000
    10" OIL MIST RECYCLER, 304 STAINLESS STEEL
    A=20" B=24" BAFFLE SIZE=16" x 20"
    $1791.70
    3192-1100-10000
    11" OIL MIST RECYCLER, GALVANIZED STEEL
    A=20" B=24" BAFFLE SIZE=16" x 20"
    $934.10
    3192-1100-20000
    11" OIL MIST RECYCLER, 304 STAINLESS STEEL
    A=20" B=24" BAFFLE SIZE=16" x 20"
    $2161.10
    3192-1200-10000
    12" OIL MIST RECYCLER, GALVANIZED STEEL
    A=20" B=28" BAFFLE SIZE=20" x 20"
    $934.10
    3192-1200-20000
    12" OIL MIST RECYCLER, 304 STAINLESS STEEL
    A=20" B=28" BAFFLE SIZE=20" x 20"
    $2161.10
    Note Icon Custom Notes:


    ORDERING NOTES: Unless specified, 3" through 24" is QF. Over 24" is flanged. Data subject to change without notice. Stainless steel components requiring flanges will be supplied with stainless steel flanges unless otherwise specified. For special parts or items to be custom manufactured, contact us for quotation.
