Key Components of Nordfab's Innovative Ducting Systems

Nordfab is a leading manufacturer of high-quality ducting systems designed for various commercial and industrial applications. Their innovative products are engineered to overcome common challenges associated with traditional rigid ducting, offering enhanced flexibility, ease of installation, and long-term maintenance benefits.

In this article, we explore the various components that make up Nordfab's ducting systems, highlighting their unique features and advantages.

Quick-Fit Duct Sections At the heart of Nordfab's ducting solutions are their Quick-Fit duct sections. These modular sections are designed with a unique clamp-and-sleeve system that allows for easy assembly, adjustment, and disassembly.

Unlike traditional welded or bolted connections, Quick-Fit sections can be quickly joined together using a simple clamping mechanism, eliminating the need for specialized tools or skills.

The Quick-Fit sections are available in a range of diameters, typically from 4 inches to 24 inches, to accommodate various airflow requirements. They are constructed from durable materials, such as galvanized steel or stainless steel, ensuring long-lasting performance and resistance to corrosion.

Nordfab® Ducting Key Parts

Nordfab Duct Clamp

Duct Clamps

Duct Clamps, also known as Quick Clamps, are the essential component that enables the seamless connection of Quick-Fit duct sections. These clamps feature a unique design that allows for a secure and airtight seal without the need for welding or bolting. Quick clamps are engineered to provide a strong grip on the duct sections, ensuring a reliable and leak-free connection.

One of the key advantages of Quick Clamps is their adjustability. They can be easily loosened or tightened, allowing for on-site modifications and adjustments to accommodate any deviations or obstructions encountered during installation. This flexibility minimizes the need for rework, saving time and reducing costs.

Nordfab Adjustable Sleeve

Sleeves

Sleeves are another critical component of Nordfab's ducting systems. These cylindrical components are designed to fit inside the ends of the Quick-Fit duct sections, providing a smooth transition and ensuring proper alignment during assembly.

Sleeves not only facilitate the connection between duct sections but also contribute to the overall system's durability and structural integrity. They help distribute the clamping force evenly, preventing deformation or damage to the duct sections over time.

Nordfab Branch

Elbows, Branches, and Fittings

Nordfab offers a comprehensive range of elbows, branches, and other fittings to accommodate complex duct routing and connection requirements. These components integrate seamlessly with the Quick-Fit ducting system.

Elbows: Available in various angles from 30° to 90°, elbows allow for smooth directional changes in the duct run, minimizing airflow turbulence and pressure drop.

Branches: Branches, including T-branches and Y-branches, enable the splitting or merging of duct runs, facilitating connections to multiple equipment or extraction points.

Transitions: Transition fittings allow for changes in duct diameter, enabling the ducting system to adapt to varying airflow requirements or connect to different-sized components.

Nordfab Flanged Pipe

Flanged Pipes

In applications where additional structural rigidity or leak-tight connections are required, Nordfab offers flanged pipes. These sections feature integral flanges that allow for bolted connections, providing a secure and durable solution for specific installation needs.

Nordfab Manual Blast Gate

Manual Blast Gates

Nordfab's QF Manual Blast Gates are specialized accessories that allow for the controlled isolation or diversion of airflow within the ducting system. These blast gates can be manually operated, providing a convenient way to regulate airflow or perform maintenance tasks on specific sections of the duct run.

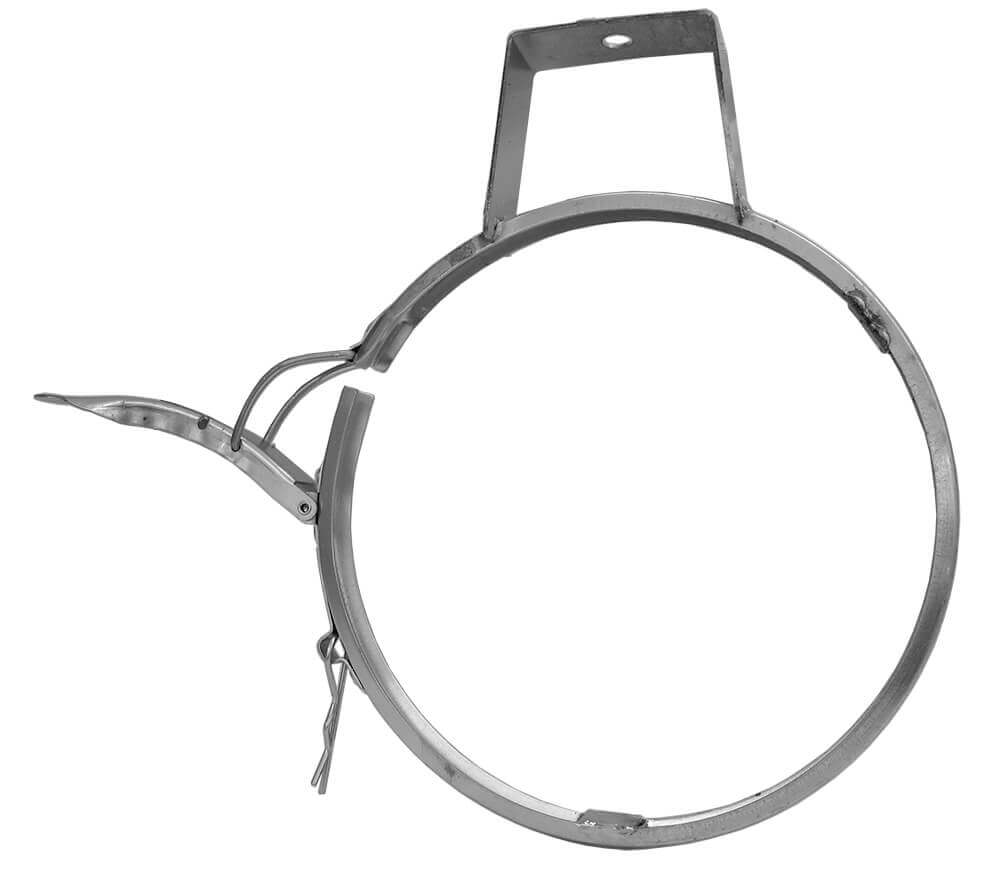

Nordfab Clamp Hanger

Hangers and Supports

Proper support and suspension of the ducting system are essential for maintaining its structural integrity and ensuring safe operation. Nordfab offers a variety of hangers and support components specifically designed for their Quick-Fit ducting systems.

These hangers and supports are engineered to accommodate the unique clamping mechanism of the Quick-Fit sections, ensuring a secure and stable installation. They are available in various sizes and configurations to suit different duct diameters and load requirements.

Why Choose Nordfab?

Modular Design

One of the key advantages of Nordfab's ducting systems is their modular design. The Quick-Fit sections, elbows, and fittings can be easily combined and reconfigured to create customized duct runs tailored to the specific requirements of each installation.

This modular approach allows for greater flexibility and adaptability, enabling efficient on-site adjustments and future system modifications or expansions. It also simplifies the prefabrication process, as pre-assembled sections can be easily transported and integrated into the final installation.

Easy Installation and Maintenance

Nordfab's ducting systems are designed with ease of installation and maintenance in mind. The Quick-Fit components, along with the clamp-and-sleeve connections, significantly reduce the time and labor required for installation compared to traditional welded or bolted systems.

Furthermore, the ability to easily disassemble and reassemble sections facilitates efficient maintenance and cleaning operations. This not only enhances worker safety by minimizing the need for confined space entry but also ensures optimal system performance over the long term.

Nordfab's innovative ducting systems offer a comprehensive solution for commercial and industrial applications, addressing common challenges associated with traditional rigid ducting.

The combination of Quick-Fit duct sections, Quick-Clamps, sleeves, elbows, fittings, hangers, and specialized accessories provides a flexible, modular, and easy-to-install system that can be tailored to specific project requirements.

By leveraging the unique features and advantages of these components, Nordfab's ducting systems deliver enhanced flexibility, ease of installation, and long-term maintenance benefits, ultimately contributing to increased productivity, safety, and cost-effectiveness for various industries.
