Explosion Isolation Valve

Download CARZ Explosion Isolation Flap PDF

The Standards
Various NFPA standards require that a dust collection system has a means of preventing the transmission of energy from a fire or explosion to the building/work area. Through extensive testing by a third party testing facility, Nordfab has developed the Explosion Isolation Flap (EIF) type CARZ to be installed upstream of the dust collector.

How It Works
Under normal operation the flap will open as the downstream air moving device generates a flow in the ductwork. Should an explosion happen in the downstream equipment - like a dust collector - a pressure front develops in the ductwork within milliseconds and due to the design of the EIF, the internal flap will be forced closed and seal off the approaching flame front. This prevents glowing embers and burning material from entering into upstream equipment and spaces.

Without Explosion Isolation Flap With Explosion Isolation Flap


Normal OperationExplosion/Deflagration

Display: All | Galvanized | Stainless
Search Sku:
Search Filter: On

The items displayed below are only those that match the above Search Sku filter.
Clear the filter and display all parts.

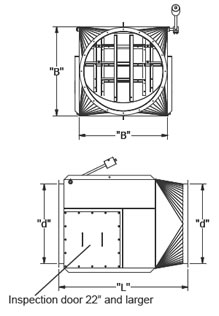

Part #/Description Price
EM-NRV07
7" No Return Valve with Locking Mechanism and Flanged Ends. ATEX Certified.
$3120.00
EM-NRV08
8" No Return Valve with Locking Mechanism and Flanged Ends. ATEX Certified.
$3328.00
EM-NRV10
10" No Return Valve with Locking Mechanism and Flanged Ends. ATEX Certified.
$3495.00
EM-NRV12
12" No Return Valve with Locking Mechanism and Flanged Ends. ATEX Certified.
$3862.00
EM-NRV14
14" No Return Valve with Locking Mechanism and Flanged Ends. ATEX Certified.
$4126.00
EM-NRV16
16" No Return Valve with Locking Mechanism and Flanged Ends. ATEX Certified.
$4687.00
EM-NRV18
18" No Return Valve with Locking Mechanism and Flanged Ends. ATEX Certified.
$5004.00
EM-NRV20
20" No Return Valve with Locking Mechanism and Flanged Ends. ATEX Certified.
$5405.00
EM-NRV22
22" No Return Valve with Locking Mechanism and Flanged Ends. ATEX Certified.
$6030.00
EM-NRV24
24" No Return Valve with Locking Mechanism and Flanged Ends. ATEX Certified.
$7568.00
EM-NRV26
26" No Return Valve with Locking Mechanism and Flanged Ends. ATEX Certified.
$7889.00
EM-NRV28
28" No Return Valve with Locking Mechanism and Flanged Ends. ATEX Certified.
$8417.00
EM-NRV32
32" No Return Valve with Locking Mechanism and Flanged Ends. ATEX Certified.
$14988.00
EM-NRV36
36" No Return Valve with Locking Mechanism and Flanged Ends. ATEX Certified.
$15830.00
EM-NRV40
40" No Return Valve with Locking Mechanism and Flanged Ends. ATEX Certified.
$15256.00
Note Icon Custom Notes:


ORDERING NOTES: Unless specified, 3" through 24" is QF. Over 24" is flanged. Data subject to change without notice. Stainless steel components requiring flanges will be supplied with stainless steel flanges unless otherwise specified. For special parts or items to be custom manufactured, contact us for quotation.


FAQs

What is the lead time to ship orders?
Most Explosion Isolation Valves ship within 5 business days. If a specialty order is placed or an item is out of stock lead time may increase up to no more than 5 weeks.

Are Explosion Isolation Valves compliant?
Yes, Explosion Isolation Valves are NFPA compliant when implemented with a dust level sensor, control panel, and miscroswitch. NFPA 69 sets construction, perform and certification requirements for Explosion Isolation Valves. It's important to be aware of NFPA 652, NFPA 654 and your industry's specific guidelines such as NFPA 61, NFPA 91, NFPA 484 and/or NFPA 664. Explosion Isolation Valves are tested by a 3rd part and are certified ATEX en16447 and en15089.

What is ATEX Certification?
ATEX is a term generally given to European Directives for managing what equipment is allowed to be installed in explosive environments. Because of the serious nature associated with explosion isolation devices, ATEX standards have been developed to make sure min. performance requirements are met. An ATEX certification if proof that equipment has met or exceeded the performance standards set forth by an accredited and unbiased 3rd party testing lab.NFPA 69 allows for No Return Valves (Flow Actuated Flap Valves) ATEX Certification to meet its 3rd party testing requirements.

I have technical questions about Explosion Isolation Valves. How do I contact you?
You can contact the specialists at ACS with any questions by calling (866) 455-2130, sending us an email or requesting a quote.


Customers Also Viewed

Spark Trap

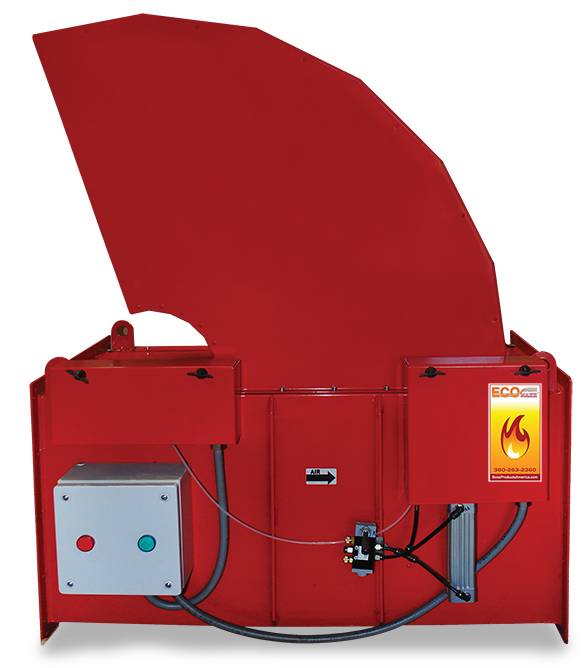

High Speed Abort Gate
