NFMES Manual Blastgate

Nordfab Ducting NFMES Manual Blastgate

Nordfab's® manual blastgates feature a compact, easy-to-operate design and are constructed of galvanized, aluminum, stainless or stainless+ with optional no. 4 finish materials with a sealing device that minimizes air loss and friction during the operation process. Other sizes are available upon request.

Construction:

  • Blade and body: 18 gauge
  • Collars: Located on the exterior side of each port and considered as air flow non-directional. Nordfab Ducting NFMES Manual Blast GateCollars have a laser welded longitudinal seam (exception: 3" collars are lapped, spot welded, and caulked.) Collars are spot welded to body.
  • Handles: 1018 carbon steel Powder Coated
  • Ends: Standard QF® end can be changed to Raw ID (RAWID), Raw OD (RAWOD), No Fitting (NF), Hose Adapter (RAWFLEX), Flat Flange (FFL), Angle Flange (ANGFL), or Van Stone (VANSTONE)
  • Display: All | Galvanized | Stainless
    Search Sku:
    Search Filter: On

    The items displayed below are only those that match the above Search Sku filter.
    Clear the filter and display all parts.

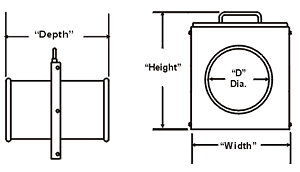

    Part #/Description Price
    3241-0300-10000
    03" NFMES BLAST GATE, GALVANIZED STEEL
    W=5.25" H=7.00" D=5.375"
    $501.70
    3241-0300-20000
    03" NFMES BLAST GATE, 304 STAINLESS STEEL
    W=5.25" H=7.00" D=5.375"
    $860.50
    3241-0400-10000
    04" NFMES BLAST GATE, GALVANIZED STEEL
    W=6.12" H=6.25" D=5.735"
    $501.70
    3241-0400-20000
    04" NFMES BLAST GATE, 304 STAINLESS STEEL
    W=6.12" H=6.25" D=5.735"
    $860.50
    3241-0500-10000
    05" NFMES BLAST GATE, GALVANIZED STEEL
    W=7.00" H=10.00" D=5.00"
    $530.10
    3241-0500-20000
    05" NFMES BLAST GATE, 304 STAINLESS STEEL
    W=7.00" H=10.00" D=5.00"
    $909.60
    3241-0600-10000
    06" NFMES BLAST GATE, GALVANIZED STEEL
    W=8.00" H=11.12" D=5.00"
    $544.80
    3241-0600-20000
    06" NFMES BLAST GATE, 304 STAINLESS STEEL
    W=8.00" H=11.12" D=5.00"
    $934.20
    3241-0700-10000
    07" NFMES BLAST GATE, GALVANIZED STEEL
    W=9.37" H=12.00" D=5.00"
    $584.90
    3241-0700-20000
    07" NFMES BLAST GATE, 304 STAINLESS STEEL
    W=9.37" H=12.00" D=5.00"
    $1003.00
    3241-0800-10000
    08" NFMES BLAST GATE, GALVANIZED STEEL
    W=11.00" H=13.25" D=5.00"
    $604.80
    3241-0800-20000
    08" NFMES BLAST GATE, 304 STAINLESS STEEL
    W=11.00" H=13.25" D=5.00"
    $1037.30
    3241-0900-10000
    09" NFMES BLAST GATE, GALVANIZED STEEL
    W=11.37" H=14.37" D=5.00"
    $642.20
    3241-0900-20000
    09" NFMES BLAST GATE, 304 STAINLESS STEEL
    W=11.37" H=14.37" D=5.00"
    $1101.40
    3241-1000-10000
    10" NFMES BLAST GATE, GALVANIZED STEEL
    W=13.50" H=16.25" D=5.00"
    $716.80
    3241-1000-20000
    10" NFMES BLAST GATE, 304 STAINLESS STEEL
    W=13.50" H=16.25" D=5.00"
    $1229.20
    3241-1200-10000
    12" NFMES BLAST GATE, GALVANIZED STEEL
    W=15.75" H=17.87" D=5.00"
    $742.60
    3241-1200-20000
    12" NFMES BLAST GATE, 304 STAINLESS STEEL
    W=15.75" H=17.87" D=5.00"
    $1273.40
    3241-1400-10000
    14" NFMES BLAST GATE, GALVANIZED STEEL
    W=18.00" H=28.50" D=5.00"
    $762.80
    3241-1400-20000
    14" NFMES BLAST GATE, 304 STAINLESS STEEL
    W=18.00" H=28.50" D=5.00"
    $1307.80
    3241-1600-10000
    16" NFMES BLAST GATE, GALVANIZED STEEL
    W=18.00" H=28.50" D=5.00"
    $811.30
    3241-1600-20000
    16" NFMES BLAST GATE, 304 STAINLESS STEEL
    W=18.00" H=28.50" D=5.00"
    $1372.20
    Note Icon Custom Notes:


    ORDERING NOTES: Unless specified, 3" through 24" is QF. Over 24" is flanged. Data subject to change without notice. Stainless steel components requiring flanges will be supplied with stainless steel flanges unless otherwise specified. For special parts or items to be custom manufactured, contact us for quotation.
